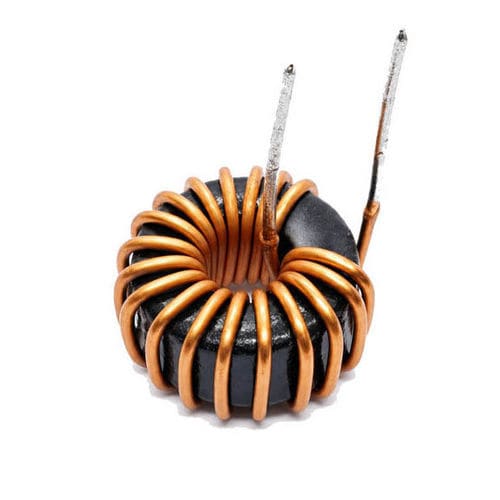

Wire-wound choke WL38125

ferrous corefilterferrite

Overview
Toroid choke coils are toroidal magnetic inductors designed to suppress electromagnetic interference (EMI) and improve power quality in electronic systems. The closed magnetic path minimizes leakage flux and electromagnetic radiation while delivering stable inductance and compact size for high-performance filtering in industrial and power-electronics applications.

Description
WL38125 toroid choke coils are manufactured by winding insulated copper wire on a toroidal core made from ferrite, powdered iron, Sendust or nanocrystalline materials. They provide high inductance per turn and low radiated emissions. Coils are available in multiple core materials and winding configurations to match voltage, current and frequency requirements for switching power supplies, converters and inverters.

How it works
The toroidal core creates a closed magnetic circuit that stores magnetic energy when current flows through the winding. Inductive reactance opposes rapid current changes, attenuating high-frequency noise while allowing DC or low-frequency currents to pass. Core material, number of turns and winding arrangement determine inductance, saturation current and frequency response.

Applications

• Switching power supplies and DC‑DC converters (EMI suppression, ripple control)
• Solar inverters, wind converters and energy storage systems
• Electric vehicle power electronics: chargers, BMS and motor controllers
• Industrial automation: PLCs, motor drives and control systems
• Consumer and professional electronics: audio systems, computers and communications
• Medical devices, aerospace electronics and telecom equipment

Advantages

• Closed magnetic path reduces leakage flux and EMI
• High inductance efficiency in a compact form factor
• Low core and copper losses with good thermal behavior
• Customizable for current rating, frequency range and mounting

Weaknesses

• Complex winding process can increase manufacturing cost
• Some designs require specialized winding equipment
• Incorrect core selection may cause saturation or reduced performance
• High-current designs require larger cores, increasing size and weight

Product Datasheet (typical parameters)

• Model: WL38125
• Core materials: Ferrite, Powdered Iron, Sendust (Fe‑Si‑Al), Nanocrystalline
• Inductance range: 2.2 µH – 10 mH
• Rated current: 6 A – 30 A
• Saturation current: up to 30 A
• Operating frequency: 10 kHz – 100 kHz
• Operating temperature: -40°C to +125°C
• Insulation: Enameled copper wire
• Core shape: Toroidal (closed magnetic circuit)
• Typical applications: switching power supplies, converters, inverters, EV electronics, industrial controllers, communication devices, medical equipment

Troubleshooting & Reliability
Typical failure modes and inspection points: overheating (verify rated current, wire gauge and core selection), insufficient EMI suppression (check inductance, winding scheme and core material), inductance drift (magnetic saturation, thermal stress or mechanical damage), audible noise (loose windings or core stress), insulation degradation. Recommend regular electrical testing, thermal monitoring and quality inspections for reliable operation.

Technical specifications

• Model: WL38125
• Core options: Ferrite / Powdered Iron / Sendust / Nanocrystalline
• Inductance: 2.2 µH – 10 mH (typical series)
• Rated current: 6 A – 30 A (typical)
• Saturation current: up to 30 A
• Frequency range: 10 kHz – 100 kHz
• Temperature range: -40°C to +125°C
• Insulation: Enameled copper wire
• Shape: Toroidal (closed magnetic circuit)
