Ferrous core inductor WL90125

wire-woundhigh-frequencytoroidal

Product Overview

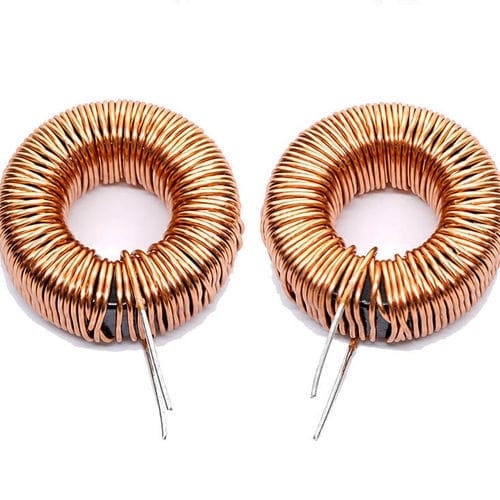

Toroidal copper coil WL90125 is a wound electromagnetic component designed for high-frequency power and filtering applications. The toroidal core geometry confines magnetic flux, minimizing leakage and EMI while improving coupling and energy transfer. Copper windings deliver low DC resistance and good thermal performance. The WL90125 is configurable for a wide inductance and current range to suit power electronics, EMI suppression and renewable-energy converters.

Key Features

• Toroidal closed magnetic path for high magnetic efficiency
• Low electromagnetic interference (EMI) and reduced stray flux
• Copper winding for high conductivity and low loss
• Compact footprint and low audible noise
• Custom winding options to set inductance, current rating and frequency response
• Good thermal behaviour and mechanical stability for industrial use

Applications

• Transformers and inductors for power conversion
• EMI filters and signal conditioning
• Switch-mode power supplies and DC–DC converters
• Power electronics and voltage regulation systems
• Renewable-energy inverters and converters (solar, wind, storage)
• Medical power supplies and precision electronics
• Low-noise audio power supplies
• Industrial automation: motor drives and control systems
• Automotive electronics and electric vehicle power modules
• Communication equipment and EMI suppression devices

How it works
The WL90125 operates by electromagnetic induction: current through the copper winding generates a magnetic field concentrated within the toroidal core. The closed-core geometry stores magnetic energy with minimal external leakage, enabling effective filtering, energy transfer and current handling in high-frequency circuits. Proper winding and core selection avoid saturation and optimize thermal performance.

Datasheet / Typical Parameters

• Model: WL90125
• Core material: Sendust (Fe–Si–Al)
• Inductance range: 5.6 µH – 500 mH (selectable by winding)
• Rated current: 13 A – 38 A (model-dependent)
• Saturation current: up to 45 A
• Operating frequency: 30 kHz – 125 kHz
• Operating temperature range: -40 °C to +125 °C
• Insulation: enameled copper wire
• Core shape: toroidal
• Primary applications: EMI filtering, power electronics, renewable energy, medical and industrial electronics

Advantages & Disadvantages

• Advantages: high magnetic efficiency, low EMI and acoustic noise, compact size, high current capability and strong magnetic coupling—suited to high-frequency power applications.
• Disadvantages: manufacturing requires precise winding which can raise production cost; compact windings complicate repair; improper design may cause overheating or core saturation.

Troubleshooting & Reliability

• Overheating: verify current rating and wire gauge; ensure adequate cooling and thermal path.
• Loss of inductance: inspect winding integrity, turn count and core condition.
• Excessive noise/EMI: review filter topology, grounding and PCB layout.
• Insulation failure: test insulation resistance and confirm voltage class.
• Magnetic saturation: select appropriate core material and dimensions for expected flux and current.
