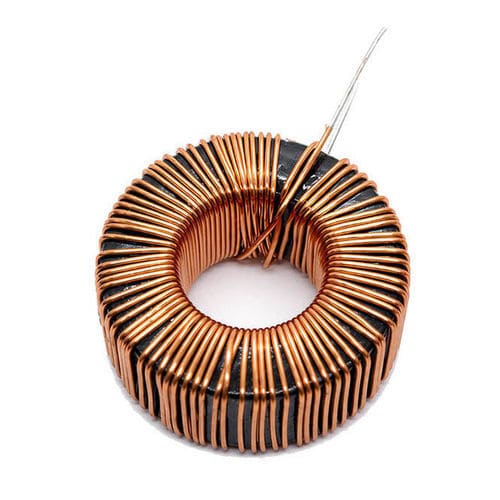

Ferrite inductor WL270125

magneticferrous corewire-wound

Summary
The Toroidal Core Coil WL270125 is a magnetic component consisting of a circular magnetic core with wound conductor. Its closed magnetic path provides inductance stability, reduced leakage flux, low electromagnetic interference (EMI) and efficient energy transfer. The toroidal construction enables compact dimensions, improved thermal behavior and low-noise operation compared with conventional coil geometries. Core material options (Sendust (Fe-Si-Al), ferrite, iron powder, nanocrystalline) allow adaptation across frequency ranges and power levels.

Toroidal Core Coil Description
A toroidal core inductor is an electromagnet with a continuous magnetic path where the winding concentrates flux inside the toroid. Key functional points:

• Closed-loop core reduces magnetic leakage and EMI.
• High inductance per unit volume enabling compact designs.
• Favorable thermal characteristics for power-electronic applications.
• Customizable: core material, number of turns, conductor size and mounting options.

How it works
Current through the winding induces a magnetic field guided by the circular core, creating a closed flux path. This concentrated path increases inductance and allows the coil to store and release energy efficiently. In AC and switching applications the coil opposes rapid current changes, providing filtering, smoothing and EMI suppression.

Product Datasheet (selected typical parameters)

• Core material (example): Sendust (Fe-Si-Al); other options: ferrite, iron powder, nanocrystalline
• Inductance range: 3 µH – 500 mH
• Rated current: 8 A – 95 A
• Saturation current: up to 110 A
• Operating frequency: 30 kHz – 125 kHz
• Operating temperature: -40 °C to +125 °C
• Insulation: enameled copper wire (typical)
• Core shape: toroidal

Applications
Typical application areas:

• Switching power supplies and industrial power conversion
• EMI noise suppression and filtering in electronic systems
• Renewable energy converters and inverters
• Automotive power electronics and energy management
• Communication systems and industrial control equipment

Advantages

• Low leakage flux and reduced EMI due to closed magnetic path.
• High inductance in compact volume enables space-saving designs.
• Stable inductance and low audible noise under normal operation.
• Configurable for target frequency, current rating and mechanical constraints.

Disadvantages

• Winding and manufacturing are more complex compared with simple bobbin coils.
• High-volume production may require dedicated winding equipment.
• Core material choice is critical for very high-frequency performance.
• Mechanical mounting and integration can be more involved than some standard inductors.

Troubleshooting & Common Issues

• Overheating: often caused by overcurrent, undersized conductor or insufficient ventilation — verify current rating and thermal design.
• Low inductance: may result from incorrect turns, core damage or wrong material — check winding and core integrity.
• Audible noise: caused by core vibration or loose windings — improve fixation and damping.
• Saturation: occurs when current exceeds core limits — select larger core or higher-saturation material.
• Insulation breakdown: from excessive temperature or mechanical damage — select appropriate insulation and test.

Technical specifications

• Model: WL270125
• Core material (example): Sendust (Fe-Si-Al); alternatives: ferrite, iron powder, nanocrystalline
• Inductance range: 3 µH – 500 mH
• Rated current: 8 A – 95 A
• Saturation current: up to 110 A
• Operating frequency: 30 kHz – 125 kHz
• Operating temperature: -40 °C to +125 °C
• Insulation: enameled copper wire (typical)
• Core shape: toroidal
