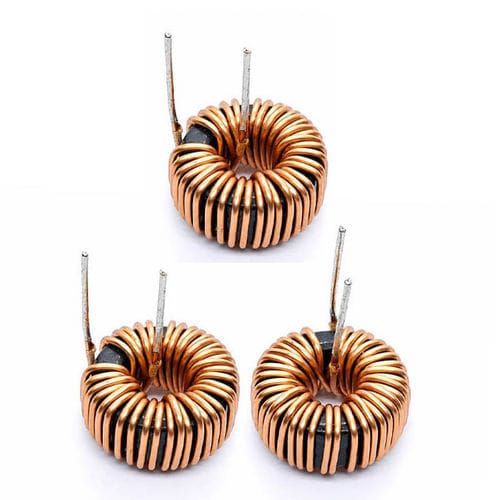

Ferrous core inductor WL50025

ferritecurrenthigh-frequency

Product Overview
A toroidal RF coil is a ring-shaped inductive component designed for high-frequency signal processing, impedance matching and EMI suppression. The closed magnetic path confines flux, improving efficiency and reducing radiation. WL50025 is available with Sendust and other core materials and is customizable for specific inductance, current rating and frequency ranges.

How it works
An alternating current through the winding generates a magnetic field confined within the toroidal core. This configuration provides inductance, supports impedance matching and filtering, and minimizes stray magnetic flux and electromagnetic emission for stable RF performance.

Compact Toroidal RF Coil Product Overview
WL50025 combines a compact toroidal core with precision winding to achieve stable inductance, high Q-factor and low loss at HF. Designers can choose core material, winding technique and geometry to optimize performance for transmitters, receivers and RF front-ends.

Technical Data sheet (typical values)

• Core material: Sendust (Fe-Si-Al) — alternatives: ferrite, powdered iron
• Inductance range: 1 µH – 10 mH
• Rated current: 1 A – 50 A
• Saturation current: up to 80 A
• Operating frequency: 10 kHz – 300 kHz
• Operating temperature: -40°C to +125°C
• Insulation: enameled copper wire
• Core shape: toroidal

Applications

• RF communication equipment (transmitters, receivers, base stations)
• Antenna matching networks and tuning circuits
• RF amplifiers and signal conditioning
• EMI filtering and noise suppression in industrial electronics
• Medical electronics and precision measurement systems
• IoT devices, 5G modules and compact wireless systems

Advantages

• High magnetic efficiency and very low leakage flux due to closed magnetic path
• Stable inductance and high Q-factor for low signal loss
• Effective noise suppression and reduced EMI/radiation
• Compact form factor suitable for space-constrained designs

Disadvantages

• Winding precision around the toroid increases production complexity and cost
• Mounting options can be limited by toroidal geometry
• Parasitic inter-turn capacitance can affect ultra-high-frequency performance if not optimized

Troubleshooting (common issues & solutions)

• Signal attenuation — verify inductance, core material and winding integrity
• Frequency deviation — check number of turns, tolerances and temperature effects
• Overheating — confirm current rating, select appropriate core and improve thermal path
• EMI problems — optimize PCB layout, add shielding or supplementary filtering

Technical specifications

• Model: WL50025
• Core materials available: ferrite, powdered iron, Sendust (Fe-Si-Al)
• Inductance range (typical): 1 µH – 10 mH
• Rated current (typical): 1 A – 50 A
• Saturation current (typical): up to 80 A
• Operating frequency (typical): 10 kHz – 300 kHz
• Operating temperature: -40°C to +125°C
• Insulation: enameled copper wire
• Core shape: toroidal
• Customizable parameters: center diameter, wire diameter, number of turns, insulating materials, inductance and mounting options
