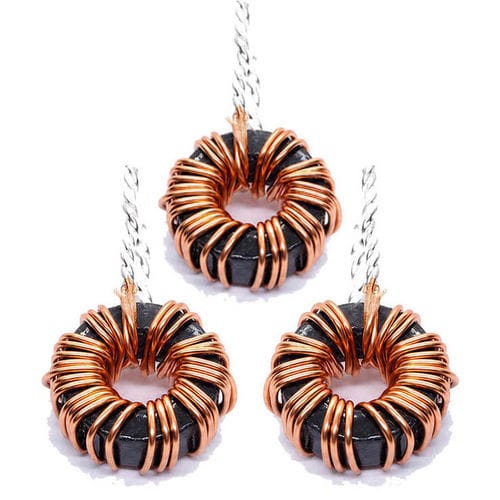

Ferrous core inductor WL44125

ferritehigh-currentfor DC

Overview
The toroidal electromagnetic coil WL44125 is a ring-core inductor engineered for industrial power and signal applications. The closed magnetic circuit delivers high magnetic efficiency, low leakage flux, reduced audible noise and minimized EMI. The coil is configurable by core material, winding, rated current, inductance and operating frequency to match application requirements.

How it works
The coil functions by electromagnetic induction: current through the winding produces a magnetic field concentrated within the toroidal core. The continuous circular core minimizes leakage flux, providing stable inductance, efficient energy storage and low radiated emissions. Magnetic intensity depends on number of turns, current, core material and coil geometry.

Applications

• Power electronics: switching power supplies, DC–DC converters, inverters and EMI filters
• Renewable energy: solar inverters, wind power converters, battery management systems
• Transformers and power supplies for industrial devices
• Audio equipment: low-noise inductors for high-fidelity amplifiers
• Medical devices, telecommunications and automotive electronics
• Industrial automation: motor controllers, control panels and sensors

Advantages

• High magnetic efficiency and low leakage flux due to closed magnetic path
• Compact form factor with high power density and stable inductance
• Low acoustic noise and reduced vibration
• Good thermal behavior and configurable for various frequencies and currents

Disadvantages / Considerations

• More complex manufacturing (specialized winding equipment) which can increase cost
• Mounting and installation may require specific fixtures due to circular geometry
• High-power versions may need additional cooling or thermal management

Troubleshooting / Common failure modes

• Overheating: excessive current, undersized wire, poor ventilation or unsuitable core material
• Low inductance: incorrect turn count, core damage or production errors
• Excessive noise: loose winding, core vibration or poor mounting — improve mechanical fixation
• Magnetic interference: improper placement near sensitive components — consider shielding or repositioning
• Short-circuit / insulation failure: damaged insulation or incorrect voltage rating — verify insulation quality and ratings

Electromagnetic coil Data Sheet
| Parameter | Typical Value |
| ——————— | ——————– |
| Core Material | Sendust (Fe-Si-Al), ferrite, iron powder, silicon steel |
| Inductance Range | 2.2µH – 300mH |
| Rated Current | 4A – 50A |
| Saturation Current | Up to 70A |
| Operating Frequency | 10 kHz – 100 kHz |
| Operating Temperature | -40°C to +125°C |
| Insulation Type | Enameled copper wire (other options available) |
| Core Shape | Toroidal |

Customization & Selection Guidance
Select based on required inductance, operating frequency, current rating, voltage rating, core material and available installation space. Ferrite cores are preferred for high-frequency, low-loss applications; iron-powder and silicon-steel cores suit higher-current power applications. Core size, turn count, wire gauge, insulation and mounting can be adapted for custom requirements.

Characteristics / Spécifications techniques

• Model identifier: WL44125
• Typical core materials: ferrite, iron powder, silicon steel, Sendust (Fe-Si-Al)
• Inductance range (typical production capability): 2.2µH – 300mH
• Rated current range (typical production capability): 4A – 50A
• Saturation current capability: up to ~70A (design dependent)
• Operating frequency range: 10 kHz – 100 kHz (application dependent)
• Operating temperature range: -40°C to +125°C
• Insulation: enameled copper wire (other insulation options possible)
• Typical uses: transformers, EMI filters, power converters, renewable inverters, audio amplifiers, medical and telecom equipment
