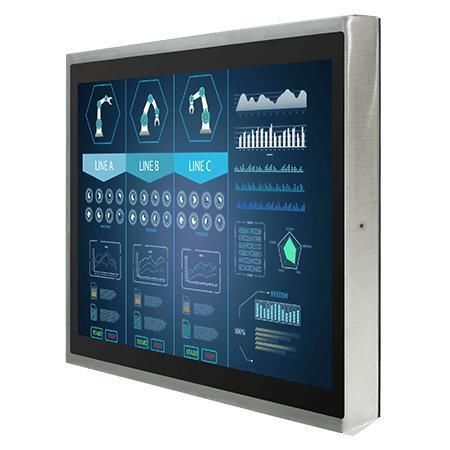

Projected capacitive touchscreen monitor R10L100-SPT2

PCAP touchscreenmultitouch screenwith PCT touch screen

Key Features

• 10.4-inch 1024×768 IP65 stainless P-CAP chassis display
• Supports VESA and yoke mounting
• Stainless housing SUS 316 / AISI 316
• Full IP65 waterproof and dustproof protection
• Projected capacitive multi-touch (P-CAP), high sensitivity
• Optional optical bonding

Certifications

• IP65
• FCC
• CE

OverviewThe R10L100-SPT2 is a 10.4-inch IP65-rated stainless steel chassis display engineered for hygienic and industrial environments such as food processing, beverage and chemical production. It features a slim SUS 316 / AISI 316 stainless housing, fanless design and flexible mounting options. The display delivers industrial-grade image quality, a sensitive multi-touch PCAP interface and optional optical bonding for improved durability and readability. Customization options include panel brightness, glass surface treatment, display ports, power connector style and customer logo support.

Highlights

• Designed for frequent cleaning and strict hygiene protocols (IP65)
• Complete stainless solution suitable for HMI and display integration in Food & Beverage and chemical plants
• Projected capacitive multi-touch supporting gestures (rotate, drag-and-drop, pinch-to-zoom)
• Chassis design with rear or VESA/yoke bracket for flexible installation
• Industrial assembly and clean-room display module for reliable image quality

I/O and Indicators

• USB: 1 x M12 waterproof connector for touch control
• Video: 1 x M12 connector for VGA input (default); optional waterproof DVI and HDMI connectors
• Indicators: 1 x LED for power; 1 x LED for status

Control & Buttons

• 1 x Power button
• 1 x Adjust up button
• 1 x Adjust down button
• 1 x ESC (Auto) button
• 1 x OK (Menu) button

Accessories (included)

• 100–240V AC to DC adapter with waterproof connector
• Power cord
• External USB cable with waterproof connector for touchscreen control
• External VGA cable with waterproof connector
• Waterproof caps
• Manual
• VESA screws

Optional Accessories

• External HDMI cable with waterproof connector (optional)
• External DVI cable with waterproof connector (optional)

Technical specifications

• Model: R10L100-SPT2
• Brand: Winmate
• Display size: 10.4 inches
• Resolution: 1024 x 768
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Panel brightness: 350 nits
• Contrast ratio: 1000:1
• View angles: 88, 88, 88, 88
• Display color: 16.2M Colors
• Active area: 210.4 x 157.8 mm
• Dimension (W x H x D): 289 x 246 x 49.9 mm
• Weight: 3.8 kg
• Mounting: VESA mount; Yoke mount
• Enclosure: Stainless housing (SUS 316 / AISI 316)
• Cooling system: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 45°C
• Storage temperature: -20°C to 60°C
• IP rating: IP65
• Certification: CE, FCC
• USB port: 1 x M12 waterproof connector for touch control
• Video inputs: 1 x M12 VGA (default); optional waterproof DVI and HDMI connectors
• Indicators: Power and status LEDs
• Control buttons: Power, Adjust up, Adjust down, ESC (Auto), OK (Menu)
• Included accessories: AC/DC adapter (100–240V) with waterproof connector, power cord, external USB and VGA cables with waterproof connectors, waterproof caps, manual, VESA screws
• Optional accessories: HDMI and DVI waterproof cables
• Power rating: 12V DC (M12 type)
