Projected capacitive touchscreen monitor R19L100-SPM1
PCAP touchscreenmultitouch screenfor hygienic applications

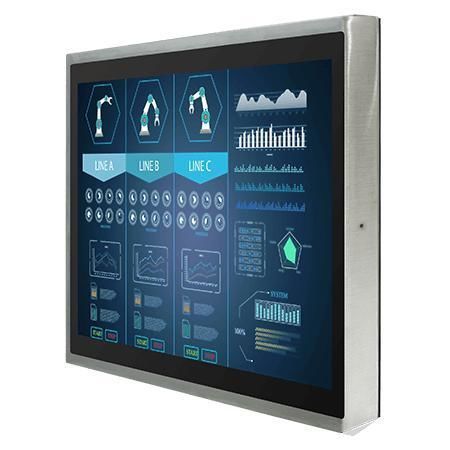

Projected capacitive touchscreen monitor - R19L100-SPM1 - Winmate, Inc. - PCAP touchscreen / multitouch screen / for hygienic applications
Projected capacitive touchscreen monitor - R19L100-SPM1 - Winmate, Inc. - PCAP touchscreen / multitouch screen / for hygienic applications
Projected capacitive touchscreen monitor - R19L100-SPM1 - Winmate, Inc. - PCAP touchscreen / multitouch screen / for hygienic applications - image - 2
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Technology
projected capacitive touchscreen, PCAP touchscreen, multitouch screen
Applications
for hygienic applications
Display size
19"
Resolution
1280 x 1024
Mounting
VESA mounting, chassis-mounted
Other characteristics
HDMI, VGA, DVI port, stainless steel, fanless, customizable, IP65, waterproof, full IP65, corrosion-resistant
Operating temperature

Min.: 0 °C
(32 °F)

Max.: 45 °C
(113 °F)

Description

Overview
  • R19L100-SPM1 is a 19-inch IP65 stainless steel chassis display with projected capacitive multi-touch, designed for hygienic industrial environments such as food, beverage and chemical processing.


Key features
  • 19", 1280 x 1024 resolution
  • Projected capacitive (PCAP) multi-touch
  • Stainless housing SUS 316 / AISI 316
  • Full-front IP65 waterproof and dustproof
  • Supports VESA and yoke mounting
  • Optional optical bonding


Certifications
  • CE
  • FCC
  • IP65


Durability & Hygienic Design
  • Front IP65 sealing and SUS316 enclosure enable frequent wash-downs and operation in environments requiring strict hygiene and corrosion resistance.


Touch & User Interaction
  • High-sensitivity projected capacitive touchscreen supporting multi-finger gestures (pinch/zoom, rotate, drag-and-drop) for industrial HMI applications.


Mechanical & Installation
  • Slim covered chassis design with multiple mounting options: VESA and yoke mounts. Fanless construction for reliable use in dusty or moisture-prone areas.


Image Quality
  • Panel brightness 250 nits, contrast ratio 1000:1, wide viewing angles. Display modules assembled in controlled environments for consistent image quality.


Connectivity & Customization
  • Waterproof I/O options (M12 connectors) for touch and video. Default VGA via M12; optional DVI/HDMI waterproof connectors. Power input: 12V DC via M12 connector. Customization available for brightness, glass treatment, ports and mechanical options.


Accessories
  • Included examples: 100~240V AC-DC adapter with waterproof connector, power cord, external USB cable (waterproof) for touch, external VGA cable (waterproof), waterproof caps, manual, VESA screws.
  • Optional: external HDMI/DVI waterproof cables, YOKE mount kit (Model: YMK-19P; P/N: 98K019A00006).


Technical specifications
  • Model: R19L100-SPM1
  • Size: 19 inches
  • Touch / Glass: Projected Capacitive Multi Touch Screen
  • Resolution: 1280 x 1024
  • Panel Brightness: 250 nits
  • Contrast Ratio: 1000:1
  • View Angles: 85 / 85 / 80 / 80
  • Display Color: 16.7M Colors
  • Active Area: 376.32 x 301.06 mm
  • Dimension: 468 x 395 x 57 mm
  • Mounting: VESA Mount; Yoke Mount
  • Enclosure: Stainless Housing (SUS 316 / AISI 316)
  • Cooling System: Fanless design
  • Operating Humidity: 10% to 90% RH, Non-Condensing
  • Operating Temperature: 0°C to 45°C
  • Storage Temperature: -20°C to 60°C
  • IP rating: IP65
  • Certification: CE, FCC
  • USB Port: 1 x M12 waterproof connector for touch control
  • Video: 1 x M12 VGA input (Default); optional waterproof DVI, HDMI inputs
  • Indicator: 1 x LED Power; 1 x LED Status
  • Control Buttons: Power; Adjust up; Adjust down; ESC (Auto); OK (Menu)
  • Power Rating: 12V DC (M12 type)
