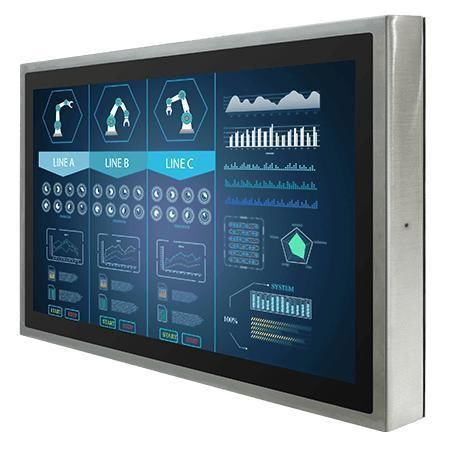

Projected capacitive touchscreen monitor W24L100-SPA2

multitouch screenindustrialfor industrial machines

Overview
The W24L100-SPA2 is a 24-inch IP65 stainless steel projected capacitive (PCAP) chassis display engineered for hygienic and harsh industrial environments such as food processing, beverage and chemical plants. It features a SUS 316 / AISI 316 stainless housing, full front IP65 protection, a slim covered chassis with VESA support and optional yoke mount, and a fanless design. The panel supports highly sensitive PCAP multi-touch with gestures (rotate, drag-and-drop, pinch-to-zoom). Winmate assembly and optional optical bonding improve image reliability and durability.

Key features

• 24 inch display, 1920 x 1080 resolution
• Projected capacitive (PCAP) multi-touch
• SUS 316 / AISI 316 stainless housing
• Full IP65 front waterproof and dustproof
• Chassis (covered) design; slim profile
• Supports VESA mount; YOKE mount optional
• Optical bonding available (optional)
• Fanless design

Certifications

• IP65 (front)
• CE
• FCC

Product details
The display delivers industrial-grade image performance with 250 nits typical brightness, 3000:1 contrast ratio, 16.7M colors and wide viewing angles. Active area: 527.04 x 296.46 mm. Mechanical design uses a slim covered chassis for easy cleaning and installation; supports rear or VESA bracket mounting with optional yoke. IO includes waterproof M12 connectors for touch and M12/VGA as standard; waterproof DVI/HDMI inputs optional. Supplied accessories: 100~240V AC to DC adapter with waterproof connector, power cord, external waterproof USB and VGA cables, waterproof caps, manual and VESA screws. Power rating: 12V DC (M12 type).

Use cases

• Food and beverage production lines requiring hygienic, washdown-capable HMIs
• Chemical plants where corrosion resistance and washdown capability are required
• Industrial automation and control systems needing PCAP multi-touch and stainless enclosures

Specifications

• Size: 24.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Resolution: 1920 x 1080
• Panel Brightness: 250 nits (typical)
• Contrast Ratio: 3000:1
• View Angles: 89 / 89 / 89 / 89
• Display Color: 16.7M colors
• Active Area: 527.04 x 296.46 mm
• Dimension (W x H x D): 620 x 390 x 56 mm
• Weight: 12 Kg
• Mounting: VESA mount (default); Yoke mount (optional)
• Enclosure: Stainless housing (SUS 316 / AISI 316)
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP rating: IP65 (front)
• Certifications: CE, FCC
• USB Port: 1 x M12 waterproof connector for touch control
• Video: 1 x M12 type connector for VGA (default); waterproof connector for DVI (optional); waterproof connector for HDMI (optional)
• Indicator: 1 x LED indicator for power; 1 x LED indicator for status
• Buttons: Power, Adjust up, Adjust down, ESC (Auto), OK (Menu)
• Accessories included: AC-DC adapter 100~240V with waterproof connector; power cord; external USB cable with waterproof connector for touch; external VGA cable with waterproof connector; waterproof caps; manual; VESA screws
• Optional accessories: External HDMI cable with waterproof connector; external DVI cable with waterproof connector; YOKE mount kit (e.g. YMK-24P)
• Power Rating: 12V DC (M12 type)
