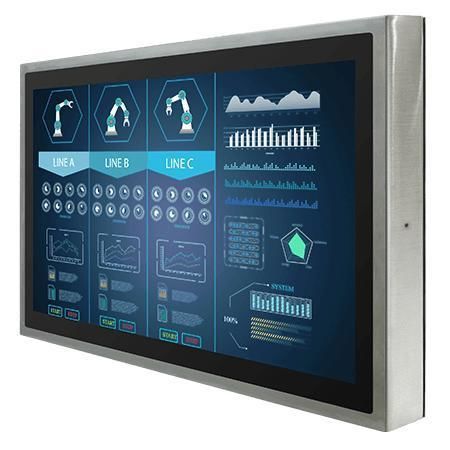

LCD monitor W22L100-SPA3

projected capacitive touchscreenmultitouch screenindustrial

Key Features

• 21.5” display, 1920 x 1080 resolution
• Support for VESA and YOKE mounting
• Chassis (covered) form factor
• Projected Capacitive (PCAP) multi-touch
• Stainless housing SUS 316 / AISI 316
• Front panel IP65 waterproof and dustproof
• Optical bonding (optional)

Certifications

• IP65
• FCC
• CE

Overview
The W22L100-SPA3 is a 21.5-inch IP65 stainless steel PCAP chassis display engineered for harsh and hygienic industrial environments such as food processing, beverage and chemical plants. The unit combines a covered chassis design with a SUS 316 / AISI 316 enclosure to resist corrosion and allow regular washdown procedures.

Design & Touch
The display uses a slim covered chassis that supports rear mounting, VESA brackets or YOKE mounts for flexible installation. It integrates a high-sensitivity PCAP multi-touch panel supporting multi-finger gestures (rotate, drag & drop, pinch-to-zoom). Optical bonding is available as an option to improve contrast and durability.

Image Quality & Customization
Display modules are assembled under clean conditions to ensure consistent image performance. Customization options include product size, customer logo, LCD brightness, glass surface treatment, selectable display ports and regional power plug variants to meet site requirements.

Included / Optional Accessories

• Included: 100~240V AC to DC adapter with waterproof connector; power cord; external USB cable with waterproof connector for touch control; external VGA cable with waterproof connector; waterproof caps; manual; VESA screws
• Optional: external HDMI cable with waterproof connector; external DVI cable with waterproof connector

Technical specifications

• Model: W22L100-SPA3
• Display size: 21.5 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1920 x 1080
• Panel Brightness: 250 nits
• Contrast Ratio: 3000:1
• View Angles: 89 / 89 / 89 / 89
• Display Color: 16.7M Colors
• Active Area: 476.64 x 268.11 mm
• Mechanical Dimension: 541 x 337 x 56.2 mm
• Mounting: VESA Mount; Yoke Mount
• Enclosure: Stainless Housing (SUS 316 / AISI 316)
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP rating: IP65 (front)
• Certification: CE, FCC
• Control / Buttons: Power, Adjust up, Adjust down, ESC (Auto), OK (Menu)
• USB Port: 1 x M12 waterproof connector for touch control
• Video inputs: 1 x M12 VGA (default); optional waterproof connectors for DVI and HDMI
• Indicator: Power and status LEDs
• Power Rating: 12V DC (M12 type)
