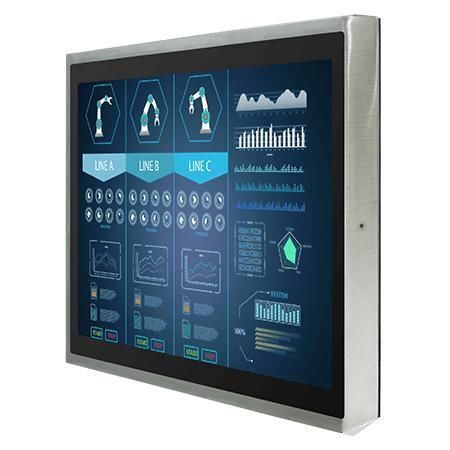

Projected capacitive touchscreen monitor R15L100-SPC3

multitouch screenindustrial15"

Overview
The R15L100-SPC3 is a 15-inch IP65 stainless PCAP chassis display engineered for industrial HMI applications in food & beverage, chemical and hygienic production environments. It features a SUS 316 / AISI 316 stainless housing, full IP65 front and chassis protection for regular washdowns, a chassis design supporting rear or VESA/Yoke mounting and a projected capacitive (P-CAP) multi-touch screen for intuitive multi-finger gestures and reliable data entry.

Key Features

• 15-inch display, 1024 x 768 resolution
• Projected Capacitive (P-CAP) multi-touch
• SUS 316 / AISI 316 stainless housing
• Full IP65 waterproof and dustproof front and chassis
• Support for VESA and Yoke mounting
• Optional optical bonding
• Fanless design for silent operation

Certifications

• IP65
• CE
• FCC

Product Description
The R15L100-SPC3 delivers a hygienic, industrial-grade HMI solution combining corrosion-resistant construction and a highly sensitive P-CAP touchscreen. Its slim chassis and multiple mounting options simplify integration into production lines and control cabinets. Display modules are assembled to ensure consistent image performance and the touchscreen supports gestures such as pinch-to-zoom, rotate and drag-and-drop for efficient operator interaction. Multiple customization options are available including panel brightness, glass surface treatment, connector types and customer branding.

Accessories

• Standard: 100–240V AC to DC adapter with waterproof connector, power cord, external USB cable with waterproof connector for touch control, external VGA cable with waterproof connector, waterproof caps, manual, VESA screws
• Optional: External HDMI cable with waterproof connector, external DVI cable with waterproof connector, Yoke mount kit

Technical Specifications

• Model: R15L100-SPC3
• Display Size: 15.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1024 x 768
• Panel Brightness: 300 nits
• Contrast Ratio: 2000:1
• View Angles: 88, 88, 88, 88
• Display Color: 16.2M Colors
• Active Area: 304.1 x 228.1 mm
• Dimensions: 378 x 301 x 56.4 mm
• Weight: 6.3 kg
• Mounting: VESA Mount; Yoke Mount
• Enclosure: Stainless Housing (SUS 316 / AISI 316)
• Cooling: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP Rating: IP65
• Certifications: CE, FCC
• IO Ports – USB: 1 x M12 waterproof connector for touch control
• IO Ports – Video: 1 x M12 connector for VGA (default); 1 x waterproof connector for DVI (optional); 1 x waterproof connector for HDMI (optional)
• Indicators: 1 x LED power; 1 x LED status
• Controls: Power, Adjust up, Adjust down, ESC (Auto), OK (Menu)
• Power: 12V DC (M12 type)
