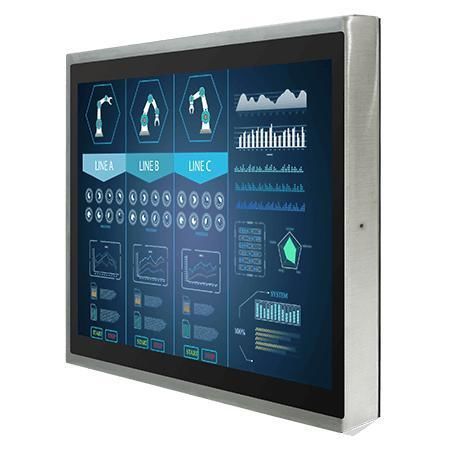

Projected capacitive touchscreen monitor R17L100-SPM1

multitouch screenindustrialfor pharmaceutical applications

Overview
The R17L100-SPM1 is a 17" IP65 stainless projected capacitive (PCAP) chassis display engineered for industrial and hygienic environments such as food processing, beverage and chemical plants. The unit features a SUS 316 (AISI 316) stainless housing, full front IP65 protection, fanless cooling and flexible mounting (VESA default, yoke optional).

Key features

• 17", 1280 x 1024 resolution
• Chassis design with covered rear for hygienic installations
• Support for VESA (default) and Yoke (optional) mounting
• Stainless housing SUS 316 / AISI 316
• Front IP65 waterproof and dustproof protection
• Projected Capacitive (P-CAP) multi-touch
• Optional optical bonding for ruggedness and improved optical performance

Certifications

• IP65 (front)
• FCC
• CE

Product details
The display is designed to withstand regular cleaning and strict hygiene procedures common in food, beverage and pharmaceutical environments. The SUS 316 stainless housing provides corrosion resistance suitable for aggressive cleaning. The high-sensitivity PCAP multi-touch supports multi-finger gestures (zoom, rotate, drag-and-drop). The slim chassis supports rear or VESA mounting and optional yoke brackets for flexible installation. Modules are assembled in controlled conditions; optical bonding is available to enhance mechanical robustness and optical clarity. Customization options include panel brightness, glass surface treatment, display ports and enclosure treatments to match application requirements.

Specifications

• Display size: 17 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1280 x 1024
• Panel brightness: 350 nits
• Contrast ratio: 1000:1
• View angles: 85, 85, 80, 80
• Display color: 16.2M Colors
• Active area: 337.920 x 270.336 mm
• Mechanical dimension: 412 x 344 x 61.3 mm
• Mounting: VESA Mount (default); Yoke Mount (optional)
• Enclosure: Stainless housing (SUS 316 / AISI 316)
• Cooling system: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 45°C
• Storage temperature: -20°C to 60°C
• IP rating: IP65 (front)
• Certification: CE, FCC
• IO ports: USB - 1 x M12 waterproof connector for touch control
• Video inputs: 1 x M12 connector for VGA (default); waterproof connectors available for DVI and HDMI (optional)
• Indicators: 1 x LED power; 1 x LED status
• Control buttons: Power, Adjust up, Adjust down, ESC (Auto), OK (Menu)
• Accessories (standard): 100~240V AC to DC adapter with waterproof connector; power cord; external USB cable (waterproof); external VGA cable (waterproof); waterproof caps; manual; VESA screws
• Optional accessories: External HDMI/DVI cables with waterproof connectors
• Power rating: 12V DC (M12 type)
