Touch screen monitor R15L600-65A1FTP

projected capacitive touchscreenmultitouch screenmulti-touch screen

Key features

• IP65 compliant front and sealed enclosure
• Stainless steel housing (SUS 316 / AISI 316) suitable for food and chemical industries
• Projected capacitive (PCAP) multi-touch with Flat Touch front
• Fanless design for silent, reliable operation and low power consumption
• M12 waterproof connectors and protective caps
• Optional optical bonding

Certifications

• CE
• FCC
• IP65

Overview

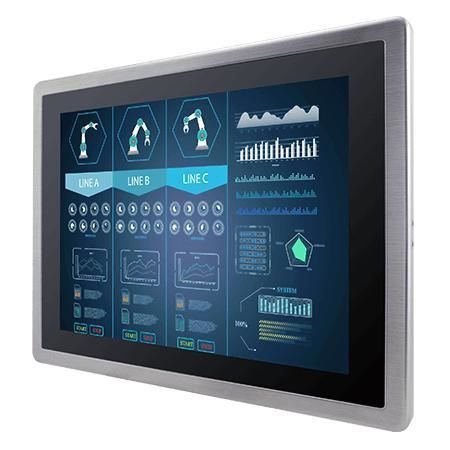

The Winmate R15L600-65A1FTP is a 15.0-inch IP65-rated stainless steel PCAP chassis display engineered for hygienic and harsh industrial environments such as food processing, beverage and chemical plants. The SUS 316 / AISI 316 stainless housing, fully sealed connectors and waterproof caps enable routine washdown and strict hygiene maintenance. The Flat Touch front facilitates cleaning and maintenance while the fanless construction reduces failure points and noise.

Features & benefits

• Dust- and water-resistant design (IP65) to withstand regular cleaning and wet environments.
• Comprehensive I/O with M12 waterproof connectors and protective caps for touch control, VGA video and power.
• Projected capacitive multi-touch supports sensitive multi-finger gestures (pinch, rotate, drag-and-drop) for modern HMI applications.
• Fully sealed connectors and cable protection ensure long-term reliability in corrosive or wet conditions.
• Industrial-grade display modules assembled under controlled conditions for consistent image quality.
• Customization options: product size, customer logo, LCD brightness, glass surface treatment, display port selection and power connector variants.

Technical specifications

• Display size: 15.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (Flat Touch)
• Resolution: 1024 x 768
• Panel brightness: 500 nits
• Contrast ratio: 2500:1
• View angles: 88, 88, 88, 88
• Display color: 16.7M colors
• Active area: 304.1 x 228.1 mm
• Dimension (W x H x D): 396 x 310 x 49 mm
• Weight: 5.7 kg
• Mounting: VESA mount
• Enclosure: Stainless housing (SUS 316 / AISI 316)
• Cooling system: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 45°C
• Storage temperature: -20°C to 60°C
• IP rating: IP65
• Certifications: CE, FCC
• USB port: 1x M12 waterproof connector for touch screen control
• Serial port: 1x M12 connector for RS232 remote control (optional)
• Video: 1x M12 connector for VGA input
• Indicators: 1x LED power; 1x LED status
• Power input: 1x M12 waterproof connector for 12V DC
• Control buttons: Power, Adjust up, Adjust down, ESC (Auto), OK (Menu)
• Accessories: External VGA cable with waterproof connector, waterproof caps, VESA screws, 100~240V AC to DC adapter with waterproof connector, power cord
• Optional accessory: External COM cable with waterproof connector for remote control
• Power rating: 12V DC (M12 type)
