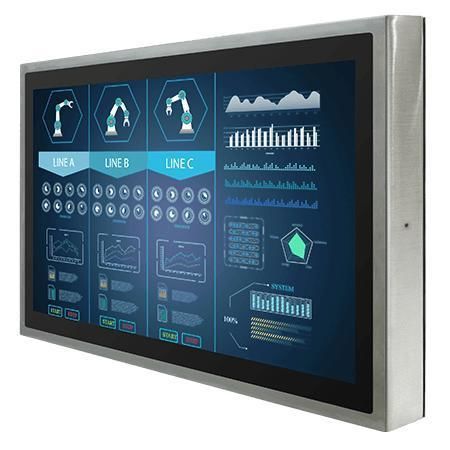

Projected capacitive touchscreen monitor W32L100-SPA3

multitouch screenindustrialfor HMI interface

Key Features

• 32-inch 1920 x 1080 IP65 stainless PCAP chassis display
• Supports VESA / YOKE mount
• Covered chassis design, fanless slim form factor
• Projected Capacitive Multi-Touch (P-CAP)
• Stainless housing SUS 316 / AISI 316
• Front IP65 waterproof and dustproof
• Optical bonding (optional)

Certifications

• IP65
• CE
• FCC

Overview
The W32L100-SPA3 is designed for industrial and hygienic environments that require frequent cleaning and strict sanitation standards, such as food, beverage and pharmaceutical production. The SUS 316 stainless housing provides corrosion resistance and a full stainless solution for HMI applications. The high-sensitivity P-CAP multi-touch panel supports gestures including rotate, drag-and-drop and multi-finger zoom. The covered chassis design supports rear or VESA/YOKE mounting for flexible installation and a clean integration; fanless construction simplifies maintenance. Display modules are assembled in clean-room conditions to ensure consistent image quality and reliability. Wide customization options are available for size, logo, panel brightness, glass surface treatment, ports and regional power connectors.

Technical specifications

• Size: 32 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (P-CAP)
• Resolution: 1920 x 1080
• Panel Brightness: 400 nits
• Contrast Ratio: 4000:1
• View Angles: 89, 89, 89, 89
• Display Color: 16.7M Colors
• Active Area: 698.4 x 392.85 mm
• Mounting: VESA Mount (supports VESA / YOKE mount)
• Enclosure: Stainless housing (SUS 316 / AISI 316)
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP rating: IP65
• Certification: CE, FCC
• USB Port: 1x M12 waterproof connector for touch control
• Video: 1x M12 connector for VGA input (default); waterproof DVI input (optional); waterproof HDMI input (optional)
• Indicators: 1 x LED power; 1 x LED status
• Controls / Buttons: Power, Adjust up, Adjust down, ESC (Auto), OK (Menu)
• Accessories (included): 100~240V AC to DC adapter with waterproof connector; power cord; external USB cable with waterproof connector; external VGA cable with waterproof connector; waterproof caps; manual; VESA screws
• Optional accessories: External HDMI cable with waterproof connector; external DVI cable with waterproof connector; external power cable with waterproof connector (for AC built-in)
• Power Rating: 24V DC (M12 type)

Applications & customization
Suitable for HMI, control panels and operator stations in food & beverage, pharmaceutical, chemical and other industrial environments where hygiene and regular washdown are required. Customization and accessory options allow integration into specific production lines and control systems.
