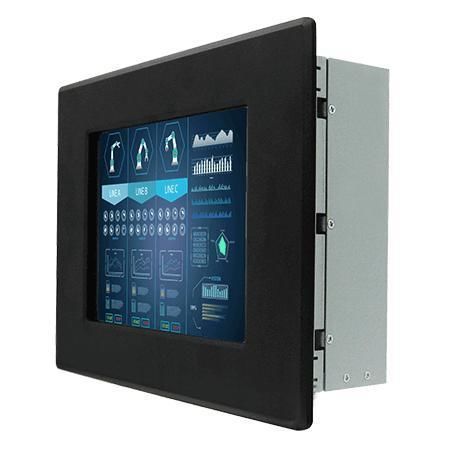

Resistive touch screen monitor R08T200-PMT1OD

industrialfor HMI interface8.4"

Product
R08T200-PMT1OD is an 8.4-inch resistive touch panel-mount display designed for industrial outdoor applications where sunlight readability and reliable panel mounting are required.

Key features

• Sunlight-readable solution with 1000 nits panel brightness
• Panel-mount form factor for flush installation
• Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Resistive touch screen (default); protection glass without touch optional
• Optional UV film for protection against direct solar radiation

Overview
Designed for industrial environments, the display supports universal wall and flat-surface mounting and is optimized for outdoor visual operation. High-brightness panel and optional solar protection improve legibility under direct sunlight. Optional heater extends operation to lower temperatures for cold environments.

Certifications

• CE
• FCC

Technical specifications

• Model: R08T200-PMT1OD
• Display size: 8.4 inches
• Touch / glass: Resistive touch screen (default); protection glass w/o touch (optional)
• Resolution: 800 x 600
• Panel brightness: 1000 nits
• Contrast ratio: 600:1
• Viewing angles: 80 / 80 / 60 / 80
• Display colors: 16.2M
• Active area: 170.4 x 127.8 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Storage temperature: -20°C to 70°C
• I/O: 1 x USB (touch), 1 x VGA (default); HDMI/DVI optional
• Audio: Line-in (3.5 mm) optional; 2 x speakers optional
• Power: 12V DC input
• Control: 5 keys ( -, +, Power, Esc, Enter )

Accessories & options

• Included: VGA cable, HDMI cable, 100–240V AC to DC adapter, power cord, manual, VESA screws (varies)
• Optional: Heater solution (for -25°C operation), UV film, protection glass without touch, remote controller
