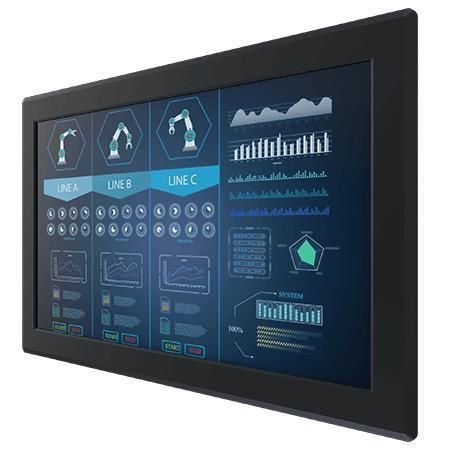

Resistive touch screen monitor W24L100-PMC1OD
for displays23.8"1920 x 1080

Resistive touch screen monitor - W24L100-PMC1OD - Winmate, Inc. - for displays / 23.8" / 1920 x 1080
Resistive touch screen monitor - W24L100-PMC1OD - Winmate, Inc. - for displays / 23.8" / 1920 x 1080
Resistive touch screen monitor - W24L100-PMC1OD - Winmate, Inc. - for displays / 23.8" / 1920 x 1080 - image - 2
Resistive touch screen monitor - W24L100-PMC1OD - Winmate, Inc. - for displays / 23.8" / 1920 x 1080 - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Technology
resistive touch screen
Applications
for displays
Display size
23.8"
Resolution
1920 x 1080
Mounting
VESA mounting, panel-mount, wall-mount
Other characteristics
HDMI, USB, VGA, aluminum, high-brightness, DVI port, fanless, sunlight-readable
Operating temperature

Min.: -25 °C
(-13 °F)

Max.: 60 °C
(140 °F)

Description

Key features
  • Sunlight-readable high-brightness solution (1000 nits)
  • Panel mount and VESA mounting options
  • Operating temperature: -10°C to 60°C (standard); optional -25°C to 60°C with heater
  • Resistive touch screen (default); protection glass without touch optional
  • Optional UV film for solar radiation protection in direct-sun environments


Overview
  • Industrial outdoor display designed for panel-mount applications and flat/wall installation, enabling flexible deployment across industrial environments.
  • High-brightness panel and sunlight-readable design support continuous 24/7 visual operation even under direct sunlight.
  • Optional heater and UV protection make the unit suitable for extended-temperature and high-solar-exposure outdoor installations.


Certifications
  • CE
  • FCC


Technical specifications
  • Model: W24L100-PMC1OD
  • Brand: Winmate
  • Display size: 23.8 inches
  • Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional)
  • Resolution: 1920 x 1080
  • Panel brightness: 1000 nits
  • Contrast ratio: 1000:1
  • View angles: 88° / 88° / 88° / 88°
  • Display color: 16.7M colors
  • Active area: 527.04 x 296.46 mm
  • Operating humidity: 10% to 90% RH, non-condensing
  • Operating temperature: -10°C to 60°C (standard); optional -25°C to 60°C with heater
  • Storage temperature: -20°C to 70°C
  • Certification: CE, FCC
  • USB port: 1 x USB for touch screen
  • Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
  • Audio: Audio line in (3.5 mm) (Optional); 2 x speaker (Optional)
  • Dimensions (W x H x D): 606 x 376 x 65 mm
  • Cut out: 560 x 330 mm
  • Weight: 8.5 kg
  • Mounting: VESA Mount / Panel Mount
  • Enclosure: Metal housing with aluminum bezel
  • Cooling system: Fanless design
  • Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
  • Optional accessory: Remote controller (optional, varies by product)
  • Power rating: 24V DC in
  • Control / Buttons: 5 keys: -, +, Power, Esc, Enter
