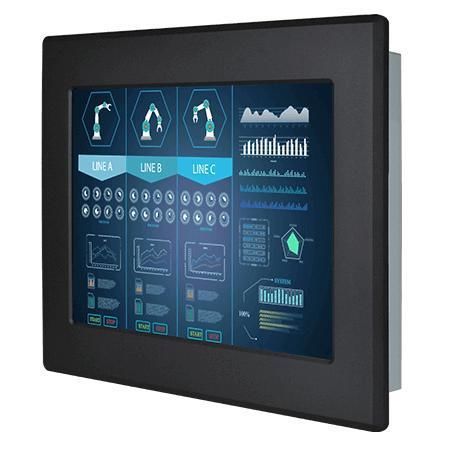

Resistive touch screen monitor R10L100-PMT2OD

outdoorfor industrial machinesfor displays

Overview
10.4-inch R10L100-PMT2OD resistive panel-mount touch display for industrial outdoor use, offering sunlight-readable high-brightness performance with optional solar radiation protection and heater.

Key features

• Sunlight-readable high-brightness panel (1000 nits)
• Panel mount (VESA / panel cut-out compatible)
• Resistive touch screen (default); optional protection glass without touch
• Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Optional UV film for solar radiation protection
• Fanless metal housing for industrial environments

Product details

• Easy mounting: supports universal wall and flat-surface panel mounting for varied industrial installations
• Clear and vibrant display: high-brightness and wide viewing angles improve readability under direct sunlight and support continuous 24/7 operation
• Designed for outdoor use: optional heater and UV film extend usable temperature range and protect the panel in direct-sun applications

Certifications

• CE
• FCC

Accessories

• Included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional: remote controller; protection glass without touch; additional I/O options

Specifications

• Model: R10L100-PMT2OD
• Size: 10.4 inches
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional)
• Resolution: 1024 x 768
• Panel brightness: 1000.0 nits
• Contrast ratio: 1000:1
• Viewing angles: 88,88,88,88
• Display color: 16.2M Colors
• Active area: 210.4 x 157.8 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Storage temperature: -20°C to 70°C
• USB: 1 x USB for touch
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: audio line in (3.5mm) optional; 2 x speakers optional
• Dimensions: 284 x 234 x 43 mm
• Cut out: 264 x 216 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal Housing with Aluminum Bezel
• Cooling: Fanless Design
• Power: 12V DC in (default); 24V DC in (optional)
• Buttons: 5 Keys: -, +, Power, Esc, Enter
