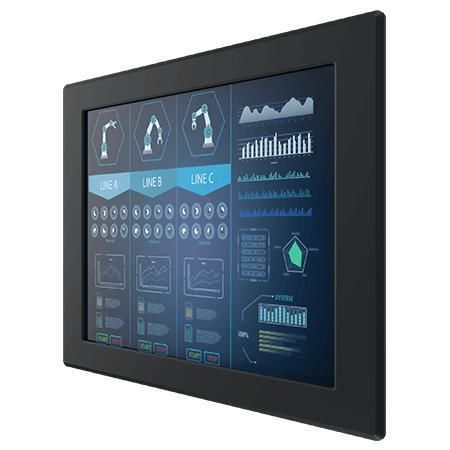

Resistive touch screen monitor R19L300-PMA3OD

industrialoutdoor19"

Overview
The R19L300-PMA3OD is a 19.0-inch resistive touch panel-mount industrial display designed for outdoor applications. It provides sunlight-readable performance with a 1000 nits panel and offers optional heater and UV film for extended environmental use.

Key Features

• Sunlight readable with 1000 nits panel brightness
• Supports panel mount and VESA mount
• Operating temperature: -10 ~ 60°C (optional -25 ~ 60°C with heater)
• Resistive touch input (default); protection glass without touch optional
• Optional UV film for solar radiation protection

Certifications

• CE
• FCC

Specifications

• Display — Size: 19.0 inches; Touch/Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional); Resolution: 1280 x 1024; Panel Brightness: 1000 nits; Contrast Ratio: 1000:1; View Angles: 85, 85, 80, 80; Display Color: 16.7M Colors; Active Area: 376.32 x 301.06 mm
• Environment — Operating Humidity: 10% to 90% RH, Non-Condensing; Operating Temperature: -10°C to 60°C (Optional -25°C to 60°C with heater); Storage Temperature: -20°C to 70°C
• Certification — CE; FCC
• IO Ports — USB: 1 x USB for touch screen; Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional); Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Mechanical — Dimension: 474 x 384 x 63 mm; Cut out: 446 x 356 mm; Mounting: Panel Mount / VESA Mount; Enclosure: Metal housing with aluminum bezel; Cooling System: Fanless Design
• Accessory — Included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product). Optional: Remote controller
• Power — Power Rating: 12V DC in (default); 24V DC in (optional)
• Control — Buttons: 5 Keys: -, +, Power, Esc, Enter
