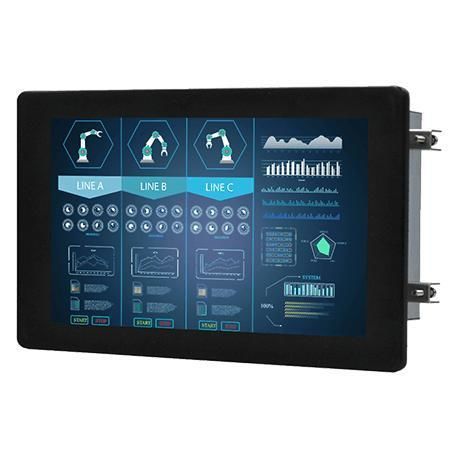

Touch screen monitor W10L100-PMH2OD

resistive touch screenwith touchscreenoutdoor

Key Features

• Sunlight-readable high-brightness solution (1000 nits)
• Panel-mount (VESA / panel mount) compatible
• Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Resistive touch screen (default); protection glass without touch optional
• Optional solar radiation protection with UV film for direct sunlight environments

Overview
The Winmate W10L100-PMH2OD is a 10.1-inch industrial panel-mount display engineered for outdoor and harsh-environment applications. It combines sunlight-readable brightness, flexible mounting and environmental options to meet industrial visualization requirements.

Easy mounting
Designed for straightforward installation, the display supports universal wall, VESA and flush panel mounting to adapt to control panels, kiosks and machine interfaces in industrial settings.

Clear and vibrant displays
With a 1280 x 800 resolution and 1000 nits panel brightness, the W10L100-PMH2OD maintains readability under direct sunlight and supports continuous 24/7 visual operation.

Built for outdoor use
Optional heater and UV film protect against low-temperature operation and solar radiation, extending the usable temperature range and safeguarding the touchscreen in exposed installations.

Specifications
Display

• Size: 10.1 inches
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass without Touch Function (Optional)
• Resolution: 1280 x 800
• Panel Brightness: 1000 nits
• Contrast Ratio: 800:1
• Viewing Angles: 85/85/85/85
• Display Color: 16.7M colors
• Active Area: 216.96 x 135.6 mm
• Optional UV film for direct sunlight protection

Environment

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Storage temperature: -20°C to 70°C

Certification

• CE
• FCC

IO Ports

• USB: 1 x USB for touch
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: audio line-in (3.5 mm) optional; 2 x speaker optional

Mechanical

• Dimensions (W x H x D): 286 x 182 x 38 mm
• Cut-out: 239 x 170 mm
• Weight: 1.25 kg
• Mounting: VESA mount / panel mount
• Enclosure: metal housing with aluminum bezel
• Cooling: fanless design

Accessory

• Included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional: remote controller (varies by product)

Power

• Power rating: 12V DC input (standard); 24V DC input (optional)

Control

• Front keys: 5 keys — -, +, Power, Esc, Enter

Technical specifications

• Model: W10L100-PMH2OD
• Brand: Winmate
• Display size: 10.1 inches
• Resolution: 1280 x 800
• Brightness: 1000 nits
• Touch: Resistive Touch Screen (default)
• Active area: 216.96 x 135.6 mm
• Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Storage temperature: -20°C to 70°C
• Operating humidity: 10% to 90% RH, non-condensing
