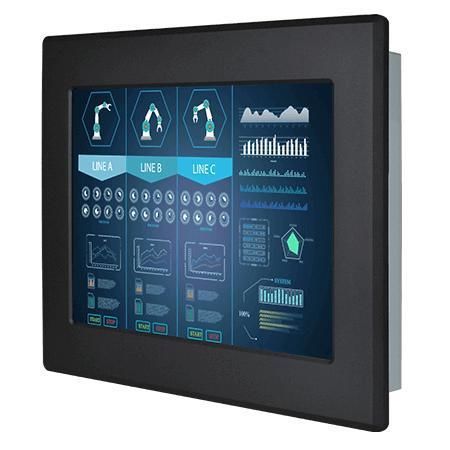

Resistive touch screen monitor R12L600-PMM2OD

12.1"1024 x 768VESA mounting

Product
R12L600-PMM2OD 12.1-inch resistive touch panel-mount display, sunlight-readable high-brightness panel with optional UV solar radiation protection and optional heater for extended operating range.

Key Features

• Sunlight-readable high-brightness solution (1000 nits)
• Panel-mount support (panel mount) with VESA mount as default
• Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Resistive touch screen (default); protection glass without touch available as option
• Optional solar radiation protection with UV film for directed-sunlight environments

Overview
The Winmate industrial outdoor display series offers easy installation with universal wall, flat-surface and panel-mount options. The family provides high-brightness, sunlight-readable displays designed for continuous 24/7 visual operation in outdoor and industrial environments. Optional heater and UV-film upgrades extend usability in low-temperature and high-solar-radiation conditions.

Certifications

• CE
• FCC

Accessories (included / optional)

• Included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional: Remote controller (varies by product)

Technical specifications

• Model: R12L600-PMM2OD
• Display size: 12.1 inches
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional)
• Resolution: 1024 x 768
• Panel brightness: 1000 nits
• Contrast ratio: 700:1
• View angles: 80, 80, 70, 70
• Display color: 16.2M colors
• Active area: 261.12 x 163.2 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Storage temperature: -20°C to 70°C
• USB port: 1 x USB for touch screen (optional)
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5 mm) (Optional); 2 x speaker (Optional)
• Mechanical dimension: 324 x 274 x 43 mm
• Cut out: 303 x 252 mm
• Weight: 2.3 kg
• Mounting: VESA mount (Default); Panel mount (Optional)
• Enclosure: Metal housing
• Cooling system: Fanless design
• Power rating: 12V DC in (Default); 24V DC in (Optional)
• Control buttons: 5 keys (-, +, Power, Esc, Enter)
