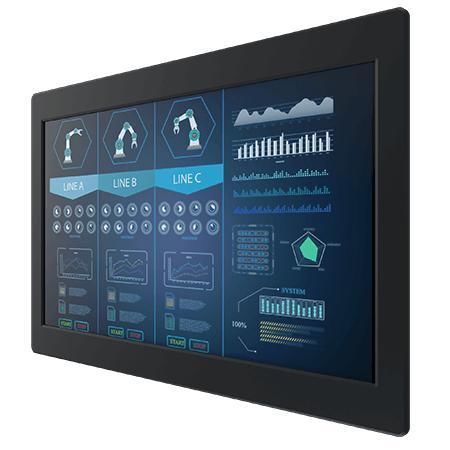

Resistive touch screen monitor W22L100-PMB1OD

21.5"1920 x 1080VESA mounting

Product overview
The W22L100-PMB1OD is a 21.5" resistive touch panel-mount display from Winmate designed for industrial and outdoor applications. It offers sunlight-readable performance and options for extended temperature and solar protection.

Key features

• Sunlight-readable with a 1000 nits panel brightness
• Panel-mount form factor for embedded installations
• Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Resistive touch screen (default); protection glass without touch optional
• Optional UV film for solar radiation protection in direct-sun environments

Certifications

• CE
• FCC

Installation
Supports universal wall and flat-surface mounting and standard VESA or panel-cut installation. Designed for straightforward integration into control panels, kiosks and industrial enclosures.

Display performance
The display includes a Full HD 1920 x 1080 panel with a 1000:1 contrast ratio, 16.7M colors and wide viewing angles, optimized for continuous 24/7 visual operation in bright conditions.

Outdoor suitability
Optional heater extends low-temperature operation; optional UV film reduces solar radiation effects on the touchscreen, making the unit suitable for industrial and commercial outdoor deployments.

Specifications (summary)

• Model: W22L100-PMB1OD
• Brand: Winmate
• Size: 21.5 inches
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional)
• Resolution: 1920 x 1080
• Panel Brightness: 1000.0 nits
• Contrast Ratio: 1000:1
• View Angles: 90, 90, 90, 90
• Display Color: 16.7M Colors
• Active Area: 476.64 x 268.11 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Storage Temperature: -20°C to 70°C
• Certification: CE, FCC
• IO Ports: 1 x USB for Touch Screen; Video: 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional); Audio: Audio line in (3.5mm) (Optional), 2 x Speaker (Optional)
• Mechanical: Dimension 534 x 349 x 66 mm; Cut out 510 x 322 mm; Mounting VESA Mount / Panel Mount; Enclosure Metal Housing with Aluminum Bezel; Cooling Fanless Design
• Accessory: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (Varies by product)
• Optional Accessory: Remote Controller (Optional, Varies by product)
• Power Rating: 12V DC in; 24V DC in (optional)
• Control: 5 Keys: -, +, Power, Esc, Enter
