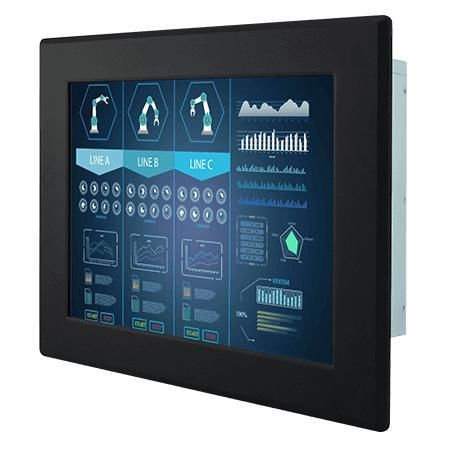

LCD monitor R15L100-PMC3OD

resistive touch screenoutdoorfor displays

Overview
The Winmate R15L100-PMC3OD is a 15-inch resistive touch panel-mount display engineered for industrial and outdoor applications. It features a sunlight-readable 1000-nit panel, standard resistive touchscreen and optional protection glass, UV film for solar radiation protection, and an optional heater for extended low-temperature operation. Supports panel and VESA mounting for flexible installation.

Key Features

• Sunlight-readable 1000 nits panel
• Panel-mount and VESA mounting support
• Operating temperature: -10°C to 60°C (standard)
• Optional heater: -25°C to 60°C
• Resistive touch screen (default); protection glass without touch (optional)
• Optional UV film for direct-sunlight environments

Product Highlights

• Flexible mounting: supports panel and VESA installations for industrial enclosures and control cabinets
• Reliable outdoor viewing: high-brightness panel optimized for sunlight readability and continuous operation
• Adapted for harsh environments: optional heater and UV film extend operating conditions for outdoor use

Certifications

• CE
• FCC

Included Accessories

• 1 x VGA cable
• 1 x HDMI cable
• 100–240V AC to DC adapter
• Power cord
• Manual
• VESA screws (varies by product)

Optional Accessories

• Remote controller (optional, varies by product)

IO & Control

• USB: 1 x USB for touch
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: audio line-in (3.5 mm) (optional); 2 x speaker (optional)
• Control buttons: 5 keys (-, +, Power, Esc, Enter)

Technical specifications

• Model: R15L100-PMC3OD
• Display size: 15.0 inches
• Touch / Glass: Resistive touch screen (default); protection glass w/o touch function (optional)
• Resolution: 1024 x 768
• Panel brightness: 1000 nits
• Contrast ratio: 2000:1
• View angles: 88/88/88/88
• Display color: 16.2M colors
• Active area: 304.1 x 228.1 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: -10°C to 60°C (standard); optional -25°C to 60°C with heater
• Storage temperature: -20°C to 70°C
• Dimensions: 400 x 320 x 56 mm
• Mounting: VESA mount / panel mount
• Enclosure: metal housing with aluminum bezel
• Cooling system: fanless design
• Power rating: 12V DC in (standard); 24V DC in (optional)
