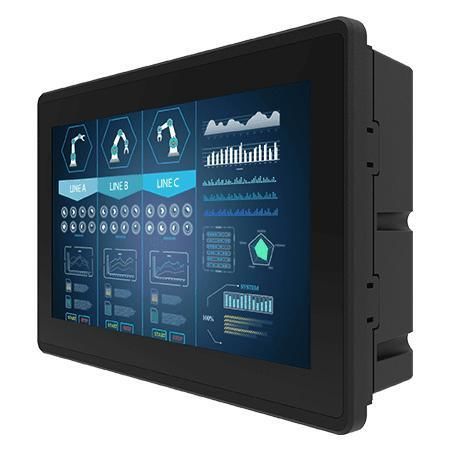

Multitouch screen monitor W07L100-EHT1OD

projected capacitive touchscreenindustrialoutdoor

Overview
7.0-inch PCAP touch panel mount display designed for outdoor and industrial applications. Sunlight-readable high-brightness panel with panel and VESA mounting options, supporting continuous 24/7 visual operation. Optional heater extends low-temperature performance and optional UV film provides protection against solar radiation for prolonged touchscreen durability.

Key Features

• Sunlight readable with 1000 nits high brightness
• Supports panel mount and VESA mount installation
• Projected Capacitive (PCAP) multi-touch screen
• Operating temperature: -10°C to 60°C
• Optional operating temperature: -25°C to 60°C with heater
• Optional solar radiation protection with UV film for direct sunlight environments

Certifications

• CE
• FCC

Product Highlights
Flexible mounting options for wall and flat-surface installation enable easy integration across industrial sectors. High-brightness panel improves readability in direct sunlight and supports reliable visual operation. Optional heater and UV film increase operational reliability in harsh outdoor environments.

Specifications

• Model: W07L100-EHT1OD
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Size: 7.0 inches
• Resolution: 1024 x 600
• Panel Brightness: 1000 nits
• Contrast Ratio: 1000:1
• View Angles: 75, 75, 75, 70
• Display Color: 16.7M Colors
• Active Area: 153.6 x 90 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Storage Temperature: -20°C to 70°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 185 x 128 x 56 mm
• Cut out: 118 x 175 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Plastic bezel & metal back cover
• Cooling System: Fanless Design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (varies by product)
• Power Rating: 12V DC in
• Control Buttons: 5 Keys: -, +, Power, Esc, Enter
