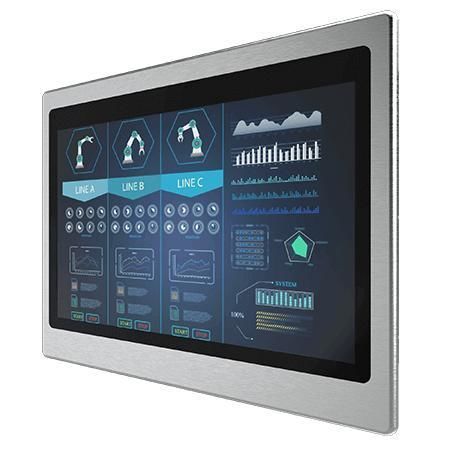

Touch screen monitor W15L100-PPL1OD

multitouch screenprojected capacitive touchscreenPCAP touchscreen

Product Overview
W15L100-PPL1OD is a 15.6" PCAP panel-mount display designed for outdoor and sunlight-readable applications. It supports panel and VESA mounting, features front IP65 protection and a fanless metal housing with an aluminum bezel. Optional heater extends low-temperature operation and optional UV film provides solar radiation protection.

Key Features

• Sunlight-readable solution with 1000 nits panel brightness
• Panel mount and VESA mount support
• Projected Capacitive (PCAP) multi-touch
• Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Optional solar radiation protection with UV film for direct sunlight
• Front IP65 protection and fanless design

Display Details

• Touch / Glass: Projected Capacitive Multi Touch Screen
• Size: 15.6 inches
• Resolution: 1920 x 1080 (Full HD)
• Panel Brightness: 1000.0 nits
• Contrast Ratio: 800:1
• View Angles: 85/85/85/85
• Display Color: 16.2M Colors
• Active Area: 344.16 x 193.59 mm

Environmental

• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Storage Temperature: -20°C to 70°C

Mechanical

• Dimensions: 404 x 285 x 59 mm
• Weight: 2.3 kg
• Mounting: VESA mount / Panel mount
• Enclosure: Metal housing with aluminum bezel
• Cooling System: Fanless design

I/O & Power

• USB Port: 1 x USB for touch
• Video: 1 x VGA (default); HDMI (optional); DVI (optional)
• Audio: Audio line-in (3.5 mm) (optional); 2 x speaker (optional)
• Power Rating: 12V DC in (standard); 24V DC in (optional)
• Control: 5 keys: -, +, Power, Esc, Enter

Certifications
CE, FCC

Accessories (included / optional)

• Included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional: Remote controller (varies by product)

Notes
Front IP65 protection, fanless design, metal housing with aluminum bezel. Optional modules and interfaces (HDMI/DVI, heater, UV film, audio, 24V input) depend on configuration.
