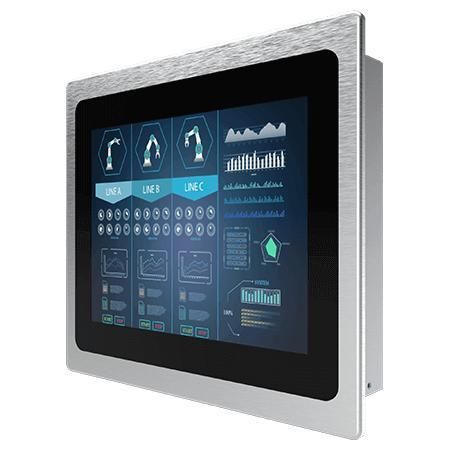

Multitouch screen monitor R10L100-PPT2ODprojected capacitive touchscreenPCAP touchscreentouch screen
Add to favorites
Compare this product
Characteristics
- Technology
- multitouch screen, projected capacitive touchscreen, PCAP touchscreen, touch screen
- Applications
- industrial, outdoor, for HMI interface
- Display size
- 10.4"
- Resolution
- 1024 x 768
- Mounting
- VESA mounting, panel-mount
- Other characteristics
- HDMI, USB, VGA, high-brightness, fanless, sunlight-readable, IP65
- Operating temperature
Max.: 60 °C
(140 °F)Min.: -10 °C
(14 °F)
Description
Overview
Key Features
Benefits & Application Notes
Certifications
Included Accessories
Optional Accessories
Technical specifications
- 10.4" PCAP panel-mount touch display engineered for outdoor and industrial environments.
- Sunlight-readable high-brightness panel (1000 nits) with optional solar radiation protection (UV film) for direct-sun applications.
- Supports panel mount and VESA mount for flexible installation on walls or flat surfaces.
- Optional heater extends operating range for cold climates.
- Front protection rating: IP65.
Key Features
- Sunlight readable with high brightness (1000 nits)
- Panel-mount and VESA-mount compatible
- Projected Capacitive (PCAP) multi-touch
- Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
- Optional UV film for solar radiation protection
- Front IP65
Benefits & Application Notes
- Mounting flexibility: supports universal wall and flat-surface installations to suit industrial equipment, kiosks, HMI panels and outdoor cabinets.
- Improved outdoor readability: high-brightness panel and sunlight-readable design support continuous 24/7 operation in bright environments.
- Ruggedized options: heater and UV film variants adapt the touchscreen for harsh outdoor industrial and commercial conditions.
Certifications
- CE
- FCC
Included Accessories
- 1 x VGA cable
- 1 x HDMI cable
- 100~240V AC to DC adapter
- Power cord
- Manual
- VESA screws (varies by product)
Optional Accessories
- Remote controller (optional, varies by product)
Technical specifications
- Model: R10L100-PPT2OD
- Brand: Winmate
- Touch / Glass: Projected Capacitive Multi Touch Screen
- Size: 10.4 inches
- Resolution: 1024 x 768
- Panel Brightness: 1000.0 nits
- Contrast Ratio: 1000:1
- View Angles: 88, 88, 88, 88
- Display Color: 16.2M Colors
- Active Area: 210.4 x 157.8 mm
- Operating Humidity: 10% to 90% RH, non-condensing
- Operating Temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
- Storage Temperature: -20°C to 70°C
- Certification: CE, FCC
- USB Port: 1 x USB for touch
- Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
- Audio: Audio line in (3.5mm) (optional); 2 x speaker (optional)
- Dimension: 284 x 252 x 55 mm
- Cut out: 262 x 218 mm
- Mounting: VESA mount / panel mount
- Enclosure: Metal housing with aluminum bezel
- Cooling System: Fanless design
- Power Rating: 12V DC in (standard); 24V DC in (optional)
- Control / Buttons: 5 keys: -, +, Power, Esc, Enter
