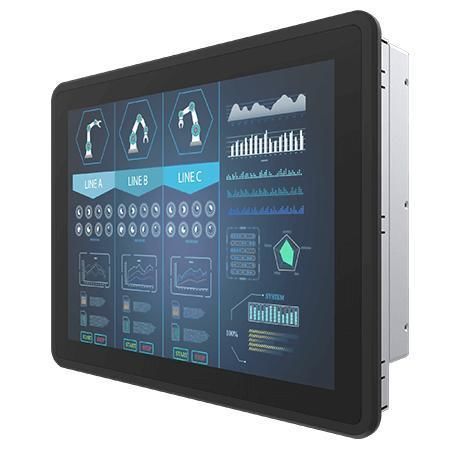

Multitouch screen monitor R15L600-PPC3OD

projected capacitive touchscreenPCAP touchscreenoutdoor

Overview
The R15L600-PPC3OD is a 15.0-inch projected-capacitive (PCAP) panel-mount outdoor display designed for industrial and commercial outdoor applications. It provides a 1000-nit sunlight-readable panel, front IP65 protection and optional solutions for extended temperature and solar radiation protection.

Key features

• Sunlight-readable panel with 1000 nits brightness
• Panel-mount and VESA mounting options
• Projected capacitive multi-touch (PCAP)
• Operating temperature: -10°C to 60°C
• Optional heater for -25°C to 60°C operation
• Optional solar radiation protection with UV film for directed sunlight
• Front protection: IP65

Outdoor design
Optional heater and UV film extend operational capability in harsh outdoor conditions. The metal housing with an aluminum bezel and fanless design supports continuous 24/7 visual operation in industrial environments.

Mounting and usability
Supports universal wall, flat-surface and panel mounting for flexible installation. Standard I/O and optional interfaces (VGA, HDMI, DVI), USB touch port and optional audio/speakers allow easy integration into control and information systems.

Certifications

• CE
• FCC

Technical specifications

• Model: R15L600-PPC3OD
• Size: 15.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1024 x 768
• Panel Brightness: 1000 nits
• Contrast Ratio: 2000:1
• View Angles: 88, 88, 88, 88
• Display Color: 16.2M Colors
• Active Area: 304.1 x 228.1 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Storage Temperature: -20°C to 70°C
• Certification: CE, FCC
• USB Port: 1 x USB for touch
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5mm) (optional); 2 x speaker (optional)
• Dimension: 367 x 291 x 63.8 mm
• Cut out: 360 x 261 mm
• Weight: 4.5 kg
• Mounting: VESA mount / Panel mount
• Enclosure: Metal housing with aluminum bezel
• Cooling System: Fanless design
• Included accessories: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional accessory: Remote controller (optional, varies by product)
• Power rating: 12V DC in (standard); 24V DC in (optional)
• Control / Buttons: 5 keys: -, +, Power, Esc, Enter
