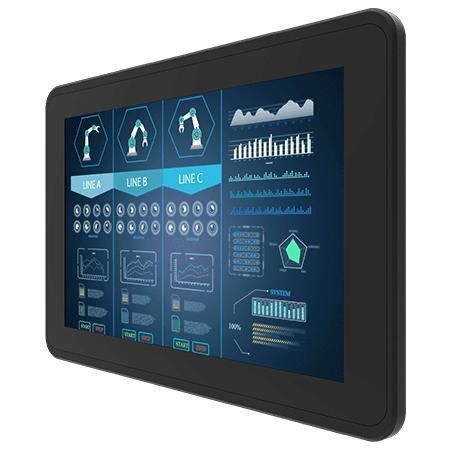

Multitouch screen monitor W10L100-EHH2OD

projected capacitive touchscreenPCAP touchscreenwith touchscreen

Overview
10.1" PCAP panel-mount touch display W10L100-EHH2OD designed for outdoor and industrial applications. Provides sunlight-readable high-brightness performance with panel and VESA mounting options, optional UV film for solar protection and optional heater for extended operating temperature ranges.

Key Features

• Sunlight-readable high-brightness solution (1000 nits)
• Supports panel mount and VESA mount
• Projected Capacitive Multi Touch (PCAP)
• Operating temperature -10°C to 60°C (optional -25°C to 60°C with heater)
• Optional solar radiation protection (UV film)

Certifications

• CE
• FCC

Product Highlights
Flexible mounting options enable easy installation on walls or flat surfaces. Metal housing with aluminum bezel and fanless design support reliable 24/7 visual operation in industrial and commercial environments. Multiple video and IO options (VGA default, HDMI/DVI optional) and configurable power inputs simplify system integration.

Specifications

• Model: W10L100-EHH2OD
• Display size: 10.1" (1280 x 800)
• Panel Brightness: 1000 nits
• Resolution: 1280 x 800
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Contrast Ratio: 800:1
• View Angles: 85/85/85/85
• Display Color: 16.7M Colors
• Active Area: 216.96 x 135.6 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Storage Temperature: -20°C to 70°C
• Dimensions: 267 x 182 x 56.5 mm; Cut out: 245 x 160 mm
• Mounting: VESA mount / Panel mount
• Enclosure: Metal housing with aluminum bezel
• Cooling System: Fanless design
• Power Rating: 12V DC in (24V DC optional)
• IO: 1 x USB for touch, 1 x VGA (default); HDMI/DVI optional; audio line in (3.5 mm) optional
• Control / Buttons: 5 keys: -, +, Power, Esc, Enter
