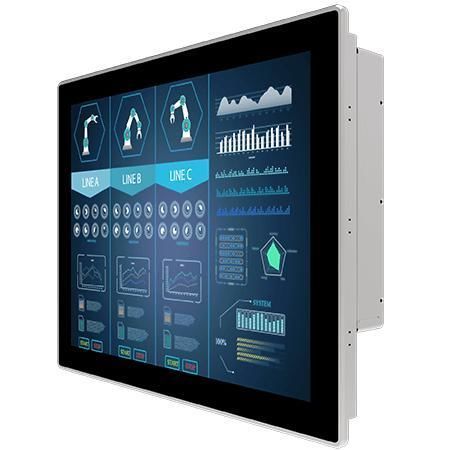

Multitouch screen monitor R19L300-PPA3OD

projected capacitive touchscreenPCAP touchscreen19"

Overview
The Winmate R19L300-PPA3OD is a 19.0-inch panel-mount projected capacitive (PCAP) multi-touch display engineered for outdoor and industrial applications. It features a sunlight-readable high-brightness panel, front IP65 protection and optional heater and UV-film solar protection for direct-sun environments.

Key Features

• Sunlight-readable high-brightness panel (1000 nits)
• Support for panel mount and VESA mounting
• Projected Capacitive (PCAP) multi-touch
• Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Optional solar radiation protection with UV film for direct sunlight
• Front protection: IP65

Certifications

• CE
• FCC

Technical specifications

• Model: R19L300-PPA3OD (19.0-inch PCAP panel-mount touch display)
• Touch / Glass: Projected Capacitive multi-touch
• Resolution: 1280 x 1024
• Panel brightness: 1000 nits
• Contrast ratio: 1000:1
• Viewing angles: 85, 85, 80, 80
• Display color: 16.7M colors
• Active area: 376.32 x 301.06 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Storage temperature: -20°C to 70°C
• Front protection: IP65
• USB: 1 x USB for touch
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line-in 3.5 mm (optional); 2 x speaker (optional)
• Dimensions (WxHxD): 446 x 370 x 77 mm
• Cut out (panel cut-out): 431 x 341 mm
• Mounting: VESA mount / panel mount
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Power: 12V DC in (standard); 24V DC in (optional)
• Controls: 5 keys: -, +, Power, Esc, Enter
• Accessories included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional accessory: Remote controller (optional)
