LCD monitor W24L100-EHC1OD
multitouch screenprojected capacitive touchscreenindustrial

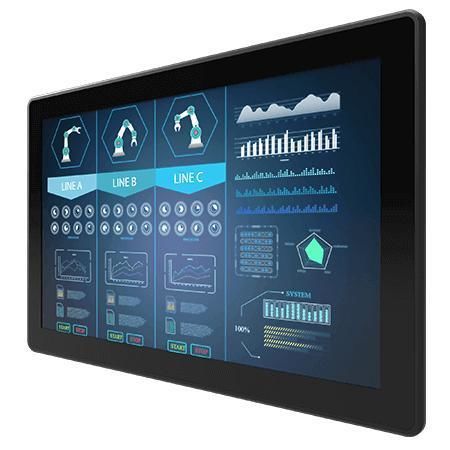

LCD monitor - W24L100-EHC1OD - Winmate, Inc. - multitouch screen / projected capacitive touchscreen / industrial
LCD monitor - W24L100-EHC1OD - Winmate, Inc. - multitouch screen / projected capacitive touchscreen / industrial
LCD monitor - W24L100-EHC1OD - Winmate, Inc. - multitouch screen / projected capacitive touchscreen / industrial - image - 2
LCD monitor - W24L100-EHC1OD - Winmate, Inc. - multitouch screen / projected capacitive touchscreen / industrial - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Technology
LCD, multitouch screen, projected capacitive touchscreen
Applications
industrial, outdoor
Display size
23.8"
Resolution
1920 x 1080
Mounting
VESA mounting, panel-mount, wall-mount
Other characteristics
HDMI, USB, VGA, aluminum, high-brightness, DVI port, fanless, sunlight-readable, wide viewing angle
Operating temperature

Min.: -25 °C
(-13 °F)

Max.: 60 °C
(140 °F)

Description

Key Features
  • Sunlight readable with high-brightness solution (1000 nits)
  • Panel mount and VESA mounting support
  • Projected Capacitive (PCAP) multi-touch
  • Operating temperature: -10°C to 60°C
  • Optional heater for extended range: -25°C to 60°C
  • Optional UV film for solar radiation protection in direct sunlight


Overview
  • Easy mounting: Supports universal wall, flat-surface and panel-mount installation for industrial applications.
  • Readability: High-brightness panel ensures visibility in direct sunlight and supports continuous 24/7 visual operation.
  • Designed for outdoor use: Optional heater and UV protection film increase reliability in extreme temperatures and high solar exposure.


Certifications
  • CE
  • FCC


Specifications
  • Model: W24L100-EHC1OD
  • Brand: Winmate
  • Touch / Glass: Projected Capacitive multi-touch screen
  • Size: 23.8 inches
  • Resolution: 1920 x 1080
  • Panel brightness: 1000 nits
  • Contrast ratio: 1000:1
  • Viewing angles: 88° / 88° / 88° / 88°
  • Display color: 16.7M colors
  • Active area: 527.04 x 296.46 mm
  • Operating humidity: 10% to 90% RH, non-condensing
  • Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
  • Storage temperature: -20°C to 70°C
  • Certifications: CE, FCC
  • USB: 1 x USB for touch
  • Video: 1 x VGA (standard); 1 x HDMI (optional); 1 x DVI (optional)
  • Audio: Audio line-in (3.5 mm) (optional); 2 x speaker (optional)
  • Dimensions: 604 x 373 x 64 mm
  • Weight: 7.3 kg
  • Mounting: VESA mount / Panel mount
  • Enclosure: Metal housing with aluminum bezel
  • Cooling: Fanless design
  • Accessories (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
  • Optional accessory: Remote controller (varies by product)
  • Power rating: 12V DC in; 24V DC in (optional)
  • Controls / Buttons: 5 keys: -, +, Power, Esc, Enter
