Touch screen monitor W22L100-EHB1OD
multitouch screenprojected capacitive touchscreenPCAP touchscreen

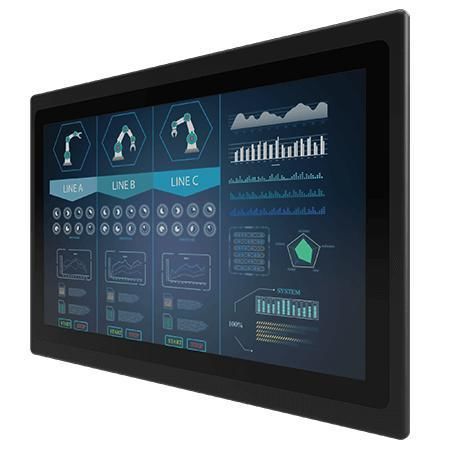

Touch screen monitor - W22L100-EHB1OD - Winmate, Inc. - multitouch screen / projected capacitive touchscreen / PCAP touchscreen
Touch screen monitor - W22L100-EHB1OD - Winmate, Inc. - multitouch screen / projected capacitive touchscreen / PCAP touchscreen
Touch screen monitor - W22L100-EHB1OD - Winmate, Inc. - multitouch screen / projected capacitive touchscreen / PCAP touchscreen - image - 2
Touch screen monitor - W22L100-EHB1OD - Winmate, Inc. - multitouch screen / projected capacitive touchscreen / PCAP touchscreen - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Technology
touch screen, multitouch screen, projected capacitive touchscreen, PCAP touchscreen
Applications
industrial, outdoor, for HMI interface
Display size
21.5"
Resolution
1920 x 1080
Mounting
VESA mounting, panel-mount
Other characteristics
HDMI, USB, VGA, aluminum, high-brightness, fanless, sunlight-readable, wide viewing angle
Operating temperature

Max.: 60 °C
(140 °F)

Min.: -25 °C
(-13 °F)

Description

Overview
  • Winmate W22L100-EHB1OD is a 21.5″ panel-mount PCAP touch display built for industrial and outdoor use, offering 1000 nits brightness, 1920 x 1080 resolution, optional heater for extended low-temperature operation and optional UV film for solar radiation protection.


Key features
  • Sunlight-readable high-brightness panel (1000 nits)
  • Panel-mount and VESA mount support
  • Projected Capacitive (PCAP) multi-touch
  • Operating temperature: -10°C to 60°C (standard)
  • Optional heater: -25°C to 60°C
  • Optional solar radiation protection with UV film
  • Fanless metal enclosure with aluminum bezel


Certifications
  • CE
  • FCC


Product details / Description
  • Product type: 21.5 inches Panel Mount Display with PCAP touch
  • Touch / Glass: Projected Capacitive Multi Touch Screen
  • Resolution: 1920 x 1080 (FHD)
  • Panel Brightness: 1000 nits
  • Contrast Ratio: 1000:1
  • View Angles: 90/90/90/90
  • Display Color: 16.7M Colors
  • Active Area: 476.64 x 268.11 mm
  • Operating Humidity: 10% to 90% RH, Non-Condensing
  • Storage Temperature: -20°C to 70°C
  • IO: 1 x USB (touch), 1 x VGA (default); HDMI/DVI optional
  • Audio: Audio line in (3.5mm) optional; 2 x speakers optional
  • Power Input: 12V DC standard; 24V DC optional; includes 100~240V AC to DC adapter
  • Dimension: 550 x 360 x 60 mm
  • Weight: 6.4 kg
  • Mounting: VESA Mount / Panel Mount
  • Cooling: Fanless design
  • Accessories included: VGA cable; HDMI cable; AC/DC adapter; power cord; manual; VESA screws (varies)


Technical specifications
  • Model: W22L100-EHB1OD
  • Screen size: 21.5″
  • Touch: Projected Capacitive Multi Touch
  • Resolution: 1920 x 1080
  • Brightness: 1000 nits
  • Contrast Ratio: 1000:1
  • Active Area (mm): 476.64 x 268.11
  • Operating Temp: -10°C to 60°C (optional -25°C to 60°C with heater)
  • Storage Temp: -20°C to 70°C
  • Operating Humidity: 10% to 90% RH, non-condensing
  • Mechanical: 550 x 360 x 60 mm; 6.4 kg
  • Enclosure: Metal housing with aluminum bezel
  • Certifications: CE, FCC
