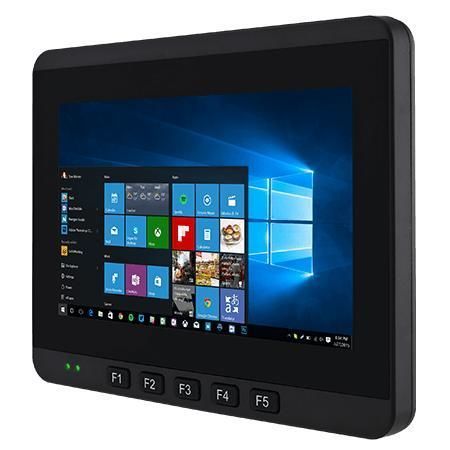

7" vehicle-mount computer FM07P

Intel® Pentium® N4200intel® celeron® N3350MIL-STD-810G

Overview
Winmate FM07P is a rugged 7-inch Windows vehicle-mounted forklift computer powered by Intel® Celeron® N3350. Designed for logistics, warehouse, cold storage and yard operations, it features a front IP65 rating, MIL-STD-810G shock and vibration resistance, M12 rugged connectors, fanless thermal design and a wide vehicle power input of 9–36V DC with ignition control.

Key features

• Intel® Celeron® N3350 (Apollo Lake) processor (Pentium N4200 optional)
• 7" 1024 x 600 P-Cap multi-touch display; high-brightness option (up to 1000 nits)
• Wide DC input 9–36V with ignition control and optional isolation power solution
• Wireless: WLAN, Bluetooth, GNSS (GPS/GLONASS); optional WWAN (4G/LTE)
• Operating temperature range: -20°C to 60°C
• MIL-STD-810G shock & vibration resistance; front IP65 protection; M12 connectors
• Fanless design, TPM 2.0, 5 programmable front function keys

Certifications

• MIL-STD-810G
• FCC
• CE

Mounting and installation
Supports RAM mount (default) and VESA 75 x 75 mm (optional) for flexible in-vehicle installation. No-drill RAM solutions, drill-base options and keyboard-mount adapter plates are available depending on vehicle and application.

Product highlights and capabilities

• I/O and legacy integration: 1 x Gigabit Ethernet (M12), 2 x USB, 2 x CANBUS, 2 x COM, DIDO (3xDI; 3xDO), SIM card slot; OEM/ODM options for J1939 CAN, RS-422/485 or GPIO.
• Memory & storage: 1 x SO‑DIMM DDR3L (4GB default, 8GB optional); 1 x M.2 2242 SSD 128GB default.
• OS options: Windows 10 IoT Enterprise 64-bit (default); Ubuntu 20.04 optional.
• Vehicle-ready: ignition-controlled power, configurable power-on/off delays, and optional isolation for vehicle power noise.

Standard accessories

• User guide
• CANBus and DIDO cable (1.8 m)
• WLAN antenna
• Power converter cable(s)
• Power adapter

Optional accessories

• WWAN antenna x2
• GPS antenna

Mounting solution - example table (No Drill Solution)
No. | Component | RAM Mount Part Number | Description | QTY
A | RAM Clamp Mounts - on the forklift | RAM-D-247U-4 | Clamp base with 2.25” Ball | 1
B | RAM Arm | RAM-D-201U | Arm for 2.25” Ball (L: 8.375”) | 1
C | RAM Ball on the device side | RAM-D-2461U | 75x75mm VESA with 2.25” Ball | 1
C-1 | Screw | - | SUS304 M4 x 12mm Screw | 4
C-2 | Washer | - | M4 Washer | 4

Notes

• Multiple mounting methods supported including No-Drill RAM, drilled round-base and keyboard-mount solutions.
• Fanless thermal design reduces maintenance; optional thermal potting/sealing available for high conductive dust or metal-dust environments.

Specifications

• Model: FM07P
• Display: 7.0" 1024 x 600 P-CAP multi-touch; active area 153.6 x 90 mm; brightness up to 1000 nits (option)
• Processor: Intel Celeron N3350 (1.1 GHz up to 2.4 GHz) default; Pentium N4200 optional
• Memory: 1 x SO‑DIMM DDR3L 4GB default (8GB optional)
• Storage: 1 x M.2 2242 SSD 128GB default
• Ethernet: 1 x Gigabit (M12)
• I/O: 2 x USB; 2 x COM; 2 x CANBUS; DIDO (3xDI; 3xDO); SIM slot; audio speaker
• Power: 9–36V DC with ignition control; Max consumption ~35 W
• Environment: Operating temp -20°C to 60°C; humidity 10%–95% RH
• Ruggedness: MIL-STD-810G shock & vibration; Front IP65
• Mounting: RAM mount (default), VESA 75 x 75 mm (optional)
• Certifications: CE, FCC, MIL-STD-810G
