8" vehicle-mount computer FM08E

Intel® Atom x6413EMIL-STD-810HIP 65

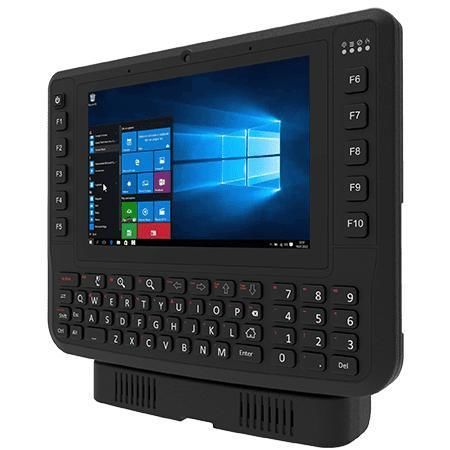

Overview The FM08E is an 8-inch Windows vehicle-mounted computer by Winmate designed for forklifts and fleet operations in industrial environments. It features an IP65-rated front, MIL-STD-810H compliance, fanless thermal design and a wide operating temperature range. Windows 10 IoT Enterprise LTSC is standard with an option for Windows 11 IoT Enterprise.

Key Features

• Intel® Elkhart Lake x6413E processor (other x64 variants optional)
• 8-inch 1280 x 800 bonded PCAP multi-touch display (glove and rain modes)
• Field-replaceable front panel and docking with latch-lock key
• IP65 front protection and fanless chassis
• Wide operating temperature (-30°C to 60°C) and internal UPS backup

Certifications

• IP65
• MIL-STD-810H
• FCC
• CE

Product Details The rugged aluminum enclosure and internal shock mounts protect storage and motherboard components under vibration and shock. The bonded sunlight-readable PCAP display ensures optical clarity outdoors. Intelligent ignition control and an internal UPS battery maintain operation and enable safe shutdown during vehicle power interruptions. Optional QWERTY keypad with LED reading light supports heavy data-entry workflows. The unit supports TPM 2.0 and enterprise device management including SOTI MobiControl compliance.

Mounting & Installation Summary Supports RAM mount and VESA mounting options for forklifts, reach trucks, pallet stackers, cranes, heavy trucks and AGVs. Docking station with latch-locking key is available for secure mounting and swift removal for servicing.

Standard & Optional Accessories

• Standard: 5m power cable with fuse kit, 0.3m USB cable, 0.15m power converter cable, DC jack power cable, 84W adapter, cable clamp kit, WLAN antennas x2, quick start guide, external antenna bracket, dock + latch key, stylus kit
• Optional: RS232 cable, audio cable, CAN BUS cables, 2m IP65 LAN cable, GPS & LTE combo antennas, magnetic combo antenna, WWAN antenna, various adapters and power cables

Notes on Use The compact 8-inch display minimizes visual obstruction in small cabins while providing sufficient area for WMS instructions. A high-brightness panel option (800 nits) improves outdoor readability. Supports glove and rain touch modes for reliable field operation.

Technical specifications

• Model: FM08E
• Brand: Winmate
• Display: 8.0 inches, 1280 x 800, PCAP multi-touch, 800 nits option
• Processor: Intel Atom x6413E (default); optional x6425E, x7433RE, x7835RE
• Memory: 4GB default; optional 8GB/16GB
• Storage: 128GB default; optional 256GB/512GB
• OS: Windows 10 IoT Enterprise LTSC default; Windows 11 IoT Enterprise optional
• Wireless: Wi‑Fi, Bluetooth; WWAN 4G/LTE optional; GNSS GPS/AGPS
• Operating temperature: -30°C to 60°C
• Shock/vibration: MIL-STD-810H
• IP rating: IP65 front
• Battery: 7.6V UPS battery (approx. 20–30 min backup)
• Dimensions: Tablet 268 x 214 x 32 mm; Docking 202 x 245 x 52 mm
• Weight: Tablet ~1.7 kg; Docking ~1.6 kg
• Mounting: RAM mount / VESA
