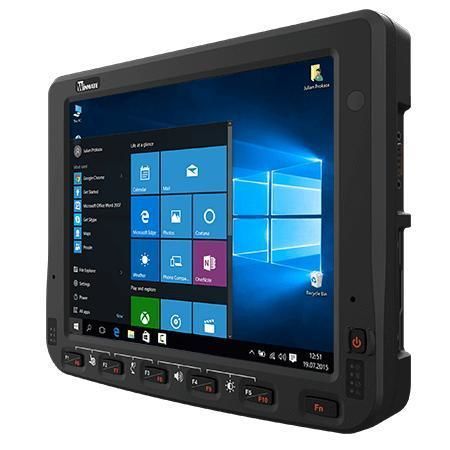

10.4" vehicle-mount computer FM10AD-V

12th Generation Intel® Core™Intel® Core i5-1235U13th Generation Intel® Core™

Overview
The FM10AD-V is a 10.4-inch vehicle mount terminal with Intel® processor, engineered for industrial vehicle applications. It delivers high computing performance, wide input voltage support and protection for harsh and cold-chain environments.

Key Features

• 12th/13th Gen Intel® processor options
• 10.4-inch 1024 x 768 panel with projected capacitive (PCAP) multi-touch
• Front IP65 waterproof and dustproof rating
• Wide power input 10–60 V DC with ignition control
• Wide operating temperature range suitable for freezer/cold-chain use
• VESA mount support and fanless design
• Programmable function keys; glove and stylus support

Certifications

• IP65
• MIL-STD-810H
• FCC
• CE

Product Details
The FM10AD-V features a vibration- and shock-resistant enclosure, PCAP multi-touch that supports glove and stylus modes, and a fanless architecture for reliable operation. Typical configurations include Intel® Core™ i5-1235U (with i5-1335U optional), up to 32 GB RAM and multiple storage options. Security and management include TPM 2.0 and compatibility with SOTI MobiControl. I/O covers USB Type-C, USB 2.0, RS232/422/485 ports, Gigabit LAN (PSE optional), audio/Micro SD, dual Nano-SIM and optional CANBus/DIDO.

Applications / Use Cases

• Forklift and warehouse vehicles, including cold-chain operations
• Integration with WMS, fleet and logistics systems
• On-vehicle diagnostics, telematics and field data capture

Mounting solutions (examples)
Mounting 1 – No Drill Solution:
A | RAM Clamp Mounts - on the forklift | RAM-D-247U-4 | Clamp base with 2.25” Ball | QTY: 1
B | RAM Arm | RAM-D-201U | Arm for 2.25” Ball (L: 8.375”) | QTY: 1
C | RAM Ball on the device side | RAM-D-2461U | 75 x 75 mm VESA with 2.25” Ball | QTY: 1
C-1 | Screw | - | SUS304 M5 x 12 mm | QTY: 5
C-2 | Washer | - | M5 Washer | QTY: 5

Mounting 2 – Drill Solution:
A1 | RAM round base mounts - on the forklift | RAM-D-202U | 3.68" Round Base with 2.25" Ball | QTY: 1
A1-1 | Screw | - | SUS304 M8 x 40 mm | QTY: 5
B | RAM Arm | RAM-D-201U | Arm for 2.25” Ball (L: 8.375”) | QTY: 1
C | RAM Ball on the device side | RAM-D-2461U | 75 x 75 mm VESA with 2.25” Ball | QTY: 1
C-1 | Screw | - | SUS304 M5 x 12 mm | QTY: 5
C-2 | Washer | - | M5 Washer | QTY: 5

Mounting 3 – Keyboard Mounting Installation:
D | Keyboard adapter plate (PN: 821009131600) | - | 4 VESA holes to device & 4 AMPS holes to RAM Ball | QTY: 1
D-1 | Screw | - | SUS304 M5 x 20 mm | QTY: 5
D-2 | Washer | - | M5 Washer | QTY: 5
E | RAM Ball on keyboard plate | RAM-D-202U | 2.5" Round Base with 1.5" Ball | QTY: 1
E-1 | Screw | - | SUS304 M4 x 14 mm | QTY: 5
E-2 | Washer | - | M4 Washer | QTY: 5
F | RAM Arm | RAM-D-201U | Arm for 1.5" Ball (Length: 5.6") | QTY: 1
G | RAM Ball on sloped plate | RAM-D-202U | 2.5" Round Base with 1.5" Ball | QTY: 1

Accessories (standard and optional)

• Standard: Fuse Kit (FK-FMD), 150W adapter with power cable, power converter cable, 1.8 m DC power cable, quick start guide
• Optional: Stylus kit, magnetic multi-band antenna (VM10S), GPS & LTE MIMO antenna (VM9C), RS232/Audio cables, RS232 & CANBus cables, IP65 LAN cable, WWAN antenna and additional waterproof/communication cables

Note
Images and example mounting parts are illustrative. Specifications and optional components depend on configuration and region.
