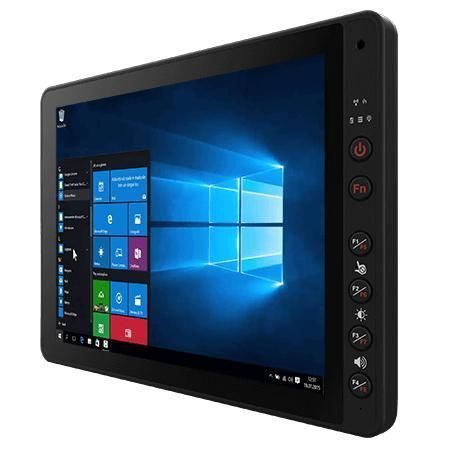

12.1" vehicle-mount computer FM12E-V

Intel® Elkhart lake SoCIntel® Atom x6413EMIL-STD-810H

Overview
The Winmate FM12E-V is a 12.1-inch vehicle-mounted computer designed for fleet, warehouse and industrial vehicle applications. It supports Intel Elkhart Lake processors, Windows IoT Enterprise platforms, wide DC input with ignition control, and IP65 front protection for dust and water resistance.

Key features

• Intel® Elkhart Lake processor family (x6413E default; higher-end options available)
• 12.1-inch 1024 x 768 projected capacitive (PCAP) multi-touch supporting finger, glove and stylus
• IP65-rated front bezel and sealed enclosure design
• Wide DC input 10–60 V with ignition on/off control
• Wide operating temperature range: -30°C to 60°C; fanless design
• VESA 75x75 mm mount and RAM mount compatibility

Certifications

• IP65
• MIL-STD-810H (shock & vibration)
• CE, FCC
• UL/EN safety listings (refer to product certification)

Product details & typical use cases
The FM12E-V is built for continuous vehicle use where vibration, shock and variable power are common (forklifts, trucks, cold chain logistics, heavy industry). It ships with Windows 10 IoT Enterprise LTSC (Windows 11 IoT Enterprise LTSC optional), TPM 2.0 support for security, and compatibility with enterprise MDM solutions for remote management.

Display & touch
The device integrates a 12.1-inch PCAP multi-touch panel (1024 x 768) with standard 400 nits brightness (800 nits optional) and supports hand, glove and stylus input modes suitable for industrial environments.

Connectivity & expansion

• Wi‑Fi and Bluetooth supported; optional WWAN (4G/LTE) and GNSS (GPS/GLONASS)
• Multiple I/O: 1 x USB Type-C, 1 x USB 2.0 Type-A, 2 x RS232/422/485 (default RS232), 1 x Gigabit LAN (PSE optional), Micro SD, Dual-Nano SIM
• Optional vehicle interfaces: CANBus, DIDO, audio variants and vehicle sensors (G-sensor, light, temperature)

Accessories (standard & optional)

• Standard: 1.8 m power cable with fuse kit, power converter cable, 84 W adapter with cable, quick start guide
• Optional: 5 m power cable with fuse kit, stylus kit, RS232 cables, IP65 LAN cable, GPS/LTE antennas (VM9C/VM10S), WWAN antenna, waterproof USB cables, cable clamp and mounting kits

Mounting solutions (summary)
Supports multiple mounting methods for vehicle installation: no-drill RAM clamp solutions, drilled round-base RAM mounts, and keyboard adapter plate options. Recommended RAM part numbers provided as guidance; final components depend on model and local availability.

Notes / operation
Designed for unstable vehicle power with wide DC input and ignition control for automatic on/off. Suitable for cold chain applications and outdoor use with optional high-brightness panel. Refer to mount tables and accessory lists for ordering specifics.

Technical specifications (selected)

• Model: FM12E-V; Manufacturer: Winmate
• Display: 12.1-inch PCAP multi-touch, 1024 x 768; 400 nits default, 800 nits optional; contrast 1000:1
• Processors: Intel Atom x6413E (default); options include x6425E, x7433RE, x7835RE
• Memory: 4 GB default; 8 GB / 16 GB optional
• Storage: 128 GB default; 256 GB / 512 GB optional
• OS: Windows 10 IoT Enterprise LTSC (default); Windows 11 IoT Enterprise LTSC optional
• Environment: Operating temperature -30°C to 60°C; 5%–90% RH non-condensing
• Durability: MIL-STD-810H shock & vibration; IP65; EN62262 IK07; enhanced ESD per EN 61000-4-2
• Power: 10–60 V DC input with ignition control; typical consumption 45 W; optional 400 mAh UPS
• Dimensions / weight: 306.6 x 225 x 56.6 mm; ≈2.4 kg
