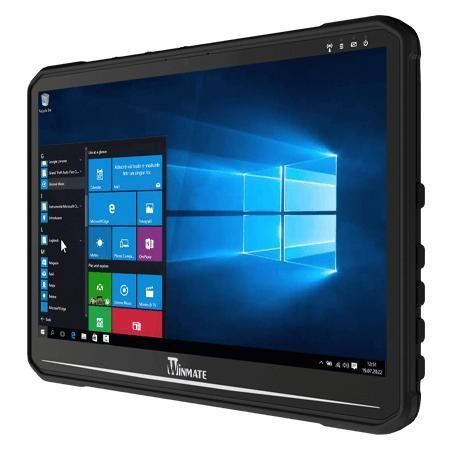

14" vehicle-mount computer FM14E-V

Intel® Elkhart lake SoCMIL-STD-810HIP 65

Overview
The Winmate FM14E-V is a 14-inch Windows vehicle-mounted computer designed for industrial and vehicle applications. It features a sealed fanless enclosure, MIL-STD-810H shock and vibration compliance, IP65 front protection, wide 10–60V DC input with ignition control and glove-capable PCAP touchscreen for reliable field operation.

Key features

• 14" 1920 x 1080 projected capacitive (PCAP) multi-touch display (optical bonding, optional high brightness 700 nits)
• Intel Elkhart Lake processor options (default Atom x6413E; optional x6425E, x7433RE, x7835RE)
• Wide power input 10–60V DC with ignition control; optional 400 mAh UPS
• Fanless sealed design; supports VESA and RAM mount solutions
• TPM 2.0 and SOTI MobiControl compatibility for device security and management

Certifications

• IP65 (front)
• MIL-STD-810H (shock & vibration)
• CE, FCC
• Other listings: IC (ICES-003), UL60950-1, EN60950-1, PTCRB

Mounting solutions (examples)

• RAM clamp mount (RAM-D-247U-4) – clamp base with 2.25" ball
• RAM arm (RAM-D-201U) – arm for 2.25" ball
• VESA + RAM ball adapter (RAM-D-2461U) – 75x75 mm VESA with 2.25" ball
• Round base mount (RAM-D-202U) – 3.68" round base with 2.25" ball (drill solution)

Technical specifications

• Display: 14.0" FHD 1920x1080 PCAP, contrast 800:1, view angles 85/85/85/85, optical bonding
• CPU: Intel Atom x6413E (1.5 GHz) default; optional x6425E, x7433RE, x7835RE
• Memory: 4 GB default; 8 GB, 16 GB options
• Storage: 128 GB default; 256 GB, 512 GB options
• OS: Windows 10 IoT Enterprise LTSC (64-bit) default; Windows 11 IoT optional
• Wireless: WLAN, Bluetooth; optional WWAN (4G/LTE) and GNSS (GPS/GLONASS)
• I/O: 1x USB 3.0 Type-C, 1x USB 2.0, 2x RS232/422/485, 1x Gigabit LAN (optional PSE 802.3at 30W), Micro SD, Dual-Nano SIM, audio (Mic/Line) or DIDO option
• Optional: CANBus, DIDO (2 DI / 2 DO), PSE power over Ethernet
• Mechanical: 342 x 225 x 52 mm; ≈2.5 kg; VESA mount
• Environment: operating -30°C to 60°C; humidity 5%–90% RH non-condensing
• Power: 10–60V DC with ignition control; typical consumption 45 W
• Ruggedness: MIL-STD-810H, EN62262 IK07 impact, enhanced ESD EN 61000-4-2

Accessories & options

• Included: power cable (1.8 m) with fuse kit, power converter cable, adapter, quick start guide
• Optional: high-brightness panel, WWAN/GNSS modules, GPS/LTE/WWAN antennas, RS232/CANBus/DIDO cables, IP65 LAN cable, stylus kit, mounting kits
