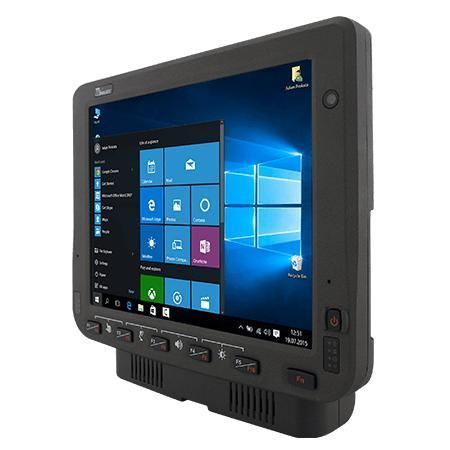

10.4" vehicle-mount computer FM10E

Intel® Atom® x6425EIntel® Elkhart lake SoCIntel® Atom x6413E

Overview
The Winmate FM10E is a 10.4-inch vehicle-mounted computer engineered for industrial and in-vehicle environments. Its modular tablet + docking concept and field-replaceable front panel reduce service time and operating costs while enabling flexible vehicle integration.

Key features

• Intel® Elkhart Lake processors (x6413E standard; options x6425E, x7433RE, x7835RE)
• 10.4" PCAP touchscreen, 1024 x 768 (XGA)
• Field-replaceable front panel for rapid maintenance
• IP65 front protection and MIL‑STD shock & vibration resistance
• Wide operating temperature range (configurable to -30 °C / +60 °C)

Functional summary
The FM10E delivers edge/IOT-capable performance for WMS, fleet and field service applications. It offers a responsive touchscreen, programmable physical function keys for vehicle use, optional WWAN (LTE) and GNSS, and extensive docking expansion (additional USB, COM, Gigabit LAN, CANbus, external antenna SMA connectors). Fanless design and integrated UPS battery enable secure mobile operation and hot swaps between vehicles.

Certifications and ruggedness

• MIL‑STD shock & vibration (MIL‑STD‑810H tests)
• IP65 front ingress protection
• CE, FCC, IC (ICES‑003); UL60950‑1 / EN60950‑1; PTCRB

Typical applications

• Forklift and logistics vehicle terminals
• Warehouse WMS terminals (10.4" 4:3 format for classic WMS interfaces)
• Industrial automation and machine control
• Field service, transport and fleet tracking (optional LTE)

Accessories (included & optional)

• Typical included items: 0.3 m USB cable (D‑Sub9/USB), power converter cable (terminal block to adapter), external antenna brackets, fuse kit, dual‑band Wi‑Fi antenna, stylus kit + screw, dock key, 84W adapter with cord, 5 m power cable with fuse
• Optional: magnetic multi‑band GPS/LTE antennas, MIMO GPS & LTE combos, CAN Bus cables, WWAN antennas, RS232 cables, IP65 LAN cable, audio cables, vehicle keyboard mounts and other adaptors

Mounting / fixing solutions

• Recommended examples (RAM Mount): RAM clamp mount (RAM‑D‑247U‑4), RAM arm (RAM‑D‑201U), RAM ball on device side VESA 75x75 (RAM‑D‑2461U). Drill and no‑drill options available; SUS304 screws and washers recommended.

FAQ (short)

• Why standard for warehouses? — 10.4" 4:3 is industry‑standard for many WMS GUIs; lists display without scaling issues.
• Cold room operation? — Optional defog/heater supports operation down to -30 °C depending on config.
• Physical programmable keys? — Yes, front bezel function keys for frequent commands.
• Wireless connectivity? — Supports Wi‑Fi, Bluetooth and optional WWAN/LTE with external antennas.
• Maintenance? — Front panel and touchscreen replaceable on site; docking secures tablet for vehicle transfer.

Technical specifications

• Model: FM10E; Brand: Winmate
• CPU (standard): Intel Atom x6413E 1.5 GHz (up to 3.0 GHz); optional x6425E, x7433RE, x7835RE
• Memory: 4 GB standard; options 8 GB / 16 GB
• Storage: 128 GB SSD standard; options 256 GB / 512 GB
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise LTSC 64‑bit standard; option Windows 11 IoT Enterprise LTSC
• Display: 10.4" 1024 x 768, PCAP multi‑touch; brightness 400 nits standard (800 nits optional); contrast 1200:1; viewing angles 88/88/88/88
• Cameras & sensors: front 2 MP camera; G‑Sensor, light sensor, temp sensor
• Connectivity: WLAN, Bluetooth; WWAN 4G/LTE optional; GNSS GPS/AGPS; SMA connectors for external antennas
• IO: 1 x USB Type‑C (tablet); via dock: DB9 connector for 2 x USB 2.0, 2 x COM, 1 x Gigabit LAN, audio/CANbus options; Micro SD; Dual‑Nano SIM
• Indicators & buttons: 6 LEDs (WLAN, BT, UPS battery, HDD, screen blanking, heater); 1 power button; 6 programmable function buttons
• Dimensions & weight: Tablet 268 x 214 x 35 mm (~1.7 kg); Docking 202 x 245 x 52 mm (~1.6 kg)
• Power: Docking input 10–60 V DC with ignition control; tablet 12 V DC in; UPS battery 7.6 V (2S1P) minimum ~30 min; typical consumption 45 W
• Environment: Operating humidity 5%–95% RH non‑condensing; operating temp -30 °C to 60 °C (depending on config); storage temp -30 °C to 60 °C
• Ruggedness: Shock MIL‑STD‑810H; Vibration MIL‑STD‑810H; IP65 front; EN62262 IK07; ESD EN 61000‑4‑2
