3.5" motherboard IAN32

x86Intel® Processor N100Intel®

Overview

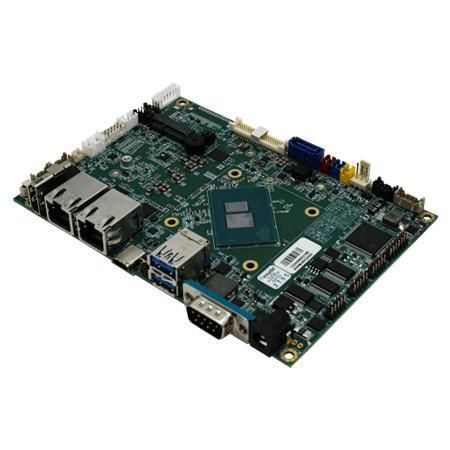

The IAN32 is an Intel® N100 x86 embedded motherboard in a compact 3.5” form factor (146 x 102 mm) designed for embedded industrial applications, IoT gateways and edge systems. It provides a low-power Intel® Processor N100 platform with DDR5 memory support, high-speed storage options and integrated networking suitable for demanding industrial environments.

Key Features

• 3.5” Form Factor (146mm x 102mm), x86 Embedded motherboard
• Intel® Processor N100
• 1 x SO-DIMM, DDR5 4800 MHz (Max. 16GB)
• Integrated Dual 2.5 Gigabit Ethernet
• 1 x USB 3.2 Type-C (USB 3.2 + DisplayPort)
• 1 x M.2 Key M Slot for M.2 2280 NVMe SSD. Optional 1 x 2.5" SATA III Storage (only when NVMe not present)
• 12 V Single Voltage Power Input

Certifications

• CE
• FCC

Product Highlights

• High-Performance Embedded Motherboard: Intel® Processor N100 delivers improved computing performance with low power consumption for embedded applications; platform includes IoT features for reliable long-term operation.
• Rugged Power Design for Extreme Environments: Supports wide 9-36V power input range and a 12V single-voltage input option; extended operating temperature range for stable operation in harsh conditions.
• Next‑Generation DDR5 Memory: Single SO‑DIMM slot supporting DDR5 4800 MHz up to 16GB for higher bandwidth and lower latency, suitable for real-time and multitasking workloads.
• Dual 2.5G Ethernet: Two integrated Intel® 2.5 Gigabit Ethernet controllers for high-speed, low-latency networking in industrial and IoT deployments.
• High-Speed M.2 NVMe Storage: M.2 Key M slot supports M.2 2280 NVMe SSDs; optional SATA III 2.5" storage available depending on configuration.

System Specification (selected details)

• Processor: Intel® Processor N100, 6M Cache, up to 3.40 GHz
• Memory: DDR5 4800 MHz, 8GB standard, 16GB optional (1 x SO‑DIMM)
• Storage: 1 x M.2 2280 M-Key NVMe SSD (128GB standard; optional: 256GB / 512GB / 1TB / 2TB / 4TB); 1 x SATA III for 2.5" SSD/HDD (only available when NVMe SSD not present)
• Ethernet controller: 2 x Intel® 2.5 Gigabit Ethernet Controller
• Security: TPM 2.0
• Operating Systems (optional): Windows 11 IoT Enterprise (64 bit), Windows 11 Pro 64 bit, Linux Ubuntu 22.04 (note: Ubuntu does not support Wake on Touch)
• WLAN / Bluetooth: Optional via M.2 E-Key

IO Ports (external)

• USB: 2 x USB3.2 Gen2x1 (Type-A); 1 x USB 3.2 Gen2x1 Type-C (supports DP Alt Mode)
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: 1 x HDMI 2.0b (optional) up to 4096x2160@60Hz; USB-C with DisplayPort Alt Mode; default LVDS; optional eDP 1.4a
• Expansion: 1 x M.2 2230 E-Key slot (for Wi‑Fi module) and 1 x M.2 2230 E-Key (for AI Acceleration Card; only available when NVMe SSD is not present)
• Power input: 1 x 12V DC, 2.5φ DC jack

Internal IO Ports

• Internal power input: 1 x 2pin (1x2) for 12V DC in
• Internal power outputs: 1 x 2pin for 3.3V DC out; 1 x 2pin for 5V DC out; 1 x 2pin for 12V DC out
• Internal USB: 2 x 8pin (2x4) for 4 x USB 2.0
• Internal serial: 3 x 10pin (2x5) for RS232
• Display connectors: 1 x 40pin DF13 for LVDS (default); 1 x 30pin DF13 for eDP 1.4a (optional) up to 4096x2304@60Hz (1 lane)
• Backlight: 1 x 7pin for panel backlight
• SATA: 1 x SATA III (only available when NVMe SSD not present) and 1 x 8pin (2x4) for SATA power
• DIDO: 1 x 14pin (2x7) for Digital I/O
• VR / brightness control: multiple 3pin connectors and jumper options for backlight brightness control and PWM/level selection
• Fan: 1 x 3pin for CPU fan
• OSD: 1 x 10pin (2x5) for OSD control
• Audio: 1 x 12pin (2x6) for Line in / Line out / Mic in
• Speaker: 2 x 2pin for speaker
• RTC battery: 1 x 2pin for backup battery

Mechanical

• Dimension: 146 x 102 mm (3.5" form factor)

Environment

• Operating humidity: 10% to 95% RH, non-condensing
• Operating temperature: 0°C to 60°C
• Storage temperature: -40°C to 70°C

Accessories

• Included: 1 x Installation Guide
• Optional accessories: SATA cable, SATA power cable, COM cable, 2‑port USB 2.0 Type A cable, 12V 84W adapter, power cord (varies by country), CPU heatspreader, membrane, 2 x speaker

Power

• Power rating: 12V DC input (1 x 12V DC jack) — the board also supports a wider 9–36V input range in design notes depending on system integration

Product FAQs (selected)

• Use cases: Compact industrial control, IoT gateways and edge systems requiring modern connectivity in a small footprint.
• Processor: Intel® Processor N100 platform.
• Memory support: DDR5 4800 up to 16GB via single SO‑DIMM.
• Storage options: M.2 2280 NVMe SSD primary; optional SATA III 2.5" when NVMe not installed.
• Networking: Dual 2.5 Gigabit Ethernet for higher throughput than traditional 1G LAN.
• Expansion / wireless: M.2 E-Key slots for optional WLAN or AI acceleration modules.
• Suitability for industrial environments: Specified for 0°C to 60°C operation, -40°C to 70°C storage, 10%–95% non-condensing humidity, CE/FCC certified; system-level integration considerations (mounting, cooling, I/O clearance) apply.

Caractéristiques / Spécifications techniques

• Model: IAN32
• Form factor: 3.5" (146 x 102 mm)
• CPU: Intel® N100 (up to 3.40 GHz)
• Memory: 1 x SO-DIMM DDR5 4800 MHz (up to 16GB)
• Storage: M.2 2280 NVMe (primary); optional SATA III 2.5" (when NVMe absent)
• LAN: 2 x Intel® 2.5GbE
• USB: 2 x USB3.2 Gen2x1 (Type-A), 1 x USB3.2 Gen2x1 Type-C (DP Alt Mode)
• Video: USB-C DP Alt Mode, optional HDMI 2.0b, LVDS (default), optional eDP 1.4a
• Expansion: M.2 2230 E-Key slots (Wi‑Fi, AI accel options)
• Security: TPM 2.0
• Power input: 12V DC (external jack) and internal 2-pin connector
• Operating temperature: 0°C to 60°C
• Storage temperature: -40°C to 70°C
• Operating humidity: 10%–95% RH non-condensing
• Certifications: CE, FCC
