Overview

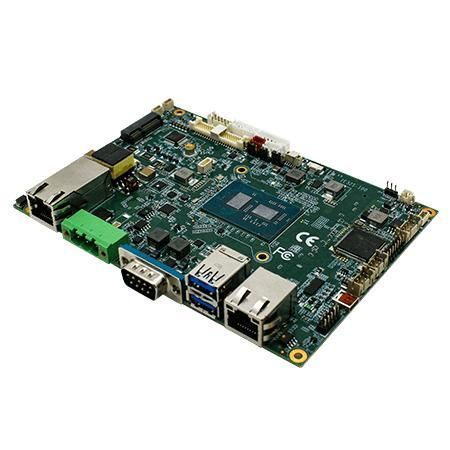

Winmate IE32S industrial single board computer powered by Intel® Celeron® Elkhart Lake N6211 processor. Compact 3.5" form factor (146 x 102 mm) designed for industrial automation, compact HMI, embedded control, and network-connected edge devices. The board offers a variety of I/O, expansion options and optional wireless and PoE capabilities for flexible system integration.

Key Features

• 3.5” Form Factor (146 mm x 102 mm / 5.7 x 4 inches)
• Intel® Celeron® Elkhart Lake N6211 Processor (up to 3.0 GHz)
• 1 x DDR4 SO‑DIMM 3200 MHz, up to 16 GB
• Intel® UHD Graphics (10th Gen)
• 2 x 2.5 Gbps Ethernet (one port with optional PoE function)
• 2 x USB 3.2 Gen2x1, 4 x USB 2.0 (via internal headers)
• 1 x RS232/422/485 serial (default RS232)
• 1 x Micro HDMI (optional)
• Supports M.2 B‑Key 2242 SATA III SSD (up to 2 TB official support)

Certifications

• CE
• FCC

Product Details
Powered by a high‑performance Intel® Celeron® N6211 CPU, the IE32S is targeted for next‑generation IoT and embedded solutions across retail, transportation, industrial automation and similar sectors. The compact footprint facilitates integration in space‑constrained enclosures while providing robust industrial I/O and extended operating conditions. Built‑in TPM 2.0 support is available for platform security.

System Specification (highlights)

• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB (default); optional 8 GB / 16 GB; DDR4 3200 SO‑DIMM, max 16 GB
• Storage: 128 GB SSD (default); options 256 GB / 512 GB / 1 TB / 2 TB; M.2 2242 B‑Key SATA III SSD supported
• Ethernet controller: Dual Intel® 2.5 Gbit Ethernet
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise (64‑bit), Windows 11 Pro, Windows 10 IoT Enterprise, Linux Ubuntu 22.04 (optional)

I/O Ports

• USB: 2 x USB 3.2 Gen2x1 (Type‑A)
• Additional USB: 4 x USB 2.0 via internal 2x4 header
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 2 x 2.5 Gbit RJ45 (one port optional PoE PD, IEEE 802.3at)
• Video: 1 x Micro HDMI (optional); internal LVDS with co‑lay for eDP (default LVDS)
• Expansion: 1 x M.2 2242 B‑Key (SATA III SSD); 1 x M.2 2230 E‑Key (Wi‑Fi / BT module)
• Power input: 1 x 12 V DC via 3‑pin terminal block

Internal I/O

• Power input: 1 x 3‑pin terminal block
• Power output: 1 x 2‑pin red wafer for 5 V DC out
• USB headers: 2 x 8‑pin (2x4) for 4 x USB 2.0; 1 x FPC connector for touch screen
• UART: 1 x 6‑pin (1x6) for UART
• Display: 1 x 40‑pin DF13 connector for LVDS (co‑lay for eDP) ; optional 40‑pin FPC LVDS connector
• Backlight: 1 x 7‑pin for panel backlight
• DIDO: 1 x 14‑pin (2x7) for digital input/output
• MCU debug (VR): 1 x 5‑pin
• OSD control: 1 x 10‑pin (2x5)
• Speaker: 2 x 2‑pin
• Backup battery: 1 x 2‑pin for RTC battery
• Audio: 1 x 12‑pin (2x6) for Line in / Line out / Mic in

Mechanical

• Dimension: 146 x 102 mm (3.5” form factor)

Environment

• Operating temperature: 0°C to 60°C
• Storage temperature: ‑40°C to 70°C
• Operating humidity: 10% to 95% RH, non‑condensing

Power

• Power rating: 12 V DC
• PoE (PD): IEEE 802.3at (up to 25 W)

Accessories (included / optional)

• Included: Installation Guide
• Optional accessories: SATA cable, SATA power cable, COM cable, 2‑Port USB 2.0 Type‑A cable, 12 V 84 W adapter, country‑specific power cord, CPU heatspreader, membrane, speakers (2), etc.

caractéristiques / spécifications techniques

• Model: IE32S
• Brand: Winmate
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: DDR4 SO‑DIMM 3200 MHz, up to 16 GB
• Storage: M.2 2242 B‑Key SATA III SSD (up to 2 TB official options listed)
• Graphics: Intel® UHD Graphics (10th Gen)
• LAN: 2 x 2.5 Gbps Ethernet (one port optional PoE PD IEEE 802.3at)
• USB: 2 x USB 3.2 Gen2 (Type‑A) + internal USB2.0 headers
• Serial: 1 x RS232/422/485 (default RS232)
• Video: Micro HDMI (optional) + LVDS / optional eDP
• Expansion: M.2 2230 E‑Key for Wi‑Fi/BT
• Security: TPM 2.0
• Power input: 12 V DC via 3‑pin terminal block; PoE PD support (optional)
• Dimensions: 146 x 102 mm
• Operating temp: 0°C to 60°C; Storage temp: ‑40°C to 70°C
• Humidity: 10% to 95% RH non‑condensing
• Certifications: CE, FCC
