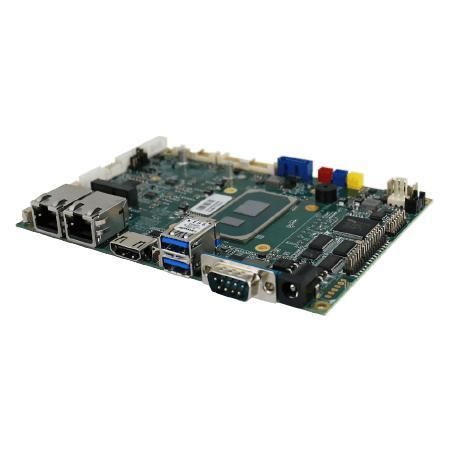

3.5" SubCompact single-board computer IT32

Intel® Core™ i5-1135G7SATA3M.2

Overview The IT32 is a 3.5" form factor x86 single-board computer (146 x 102 mm) from Winmate, powered by an Intel® Core™ i5-1135G7. It targets industrial and embedded applications requiring compact size, flexible storage and display options, dual high-speed Ethernet and a single 12 V power input for simplified system integration.

Key Features

• 3.5" form factor SBC (146 x 102 mm)
• Intel® 11th Gen Core™ i5-1135G7 processor (2.4 GHz base, up to 4.2 GHz)
• 1 x SO-DIMM DDR4 3200 MHz (Max. 32 GB)
• Integrated dual 2.5 Gbps Ethernet (2 x RJ45)
• 1 x M.2 Key M (M.2 2242 SATA III default; optional M.2 2280 NVMe)
• LVDS (default), optional eDP and HDMI 2.0; TPM 2.0; 12 V DC power input

Product Highlights

• Compact SBC delivering x86 compute suitable for edge and embedded control tasks.
• Abundant front/top I/O and internal headers for easy integration in constrained enclosures.
• Industrial operating range and robust layout for deployment in automation, HMI and edge systems.
• Supports optional wireless module (M.2 2230 E-Key) and multiple storage configurations for flexible BOM options.

Certifications

• CE
• FCC

Technical specifications

• Processor: Intel Core i5-1135G7 (2.4 GHz up to 4.2 GHz)
• Memory: 4 GB default; optional 8/16/32 GB; 1 x SO-DIMM, DDR4-3200, max 32 GB
• Storage: 128 GB SSD default; optional 256/512 GB/1/2/4 TB; 1 x M.2 2242 (SATA III) default; optional M.2 2280 NVMe; optional 1 x SATA III for 2.5" drive
• Ethernet: 2 x Intel® Ethernet Controller, 2 x 2.5 Gbps RJ45
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Ubuntu 22.04 (Wake on Touch not supported)
• Wireless: Optional via M.2 2230 E-Key (Wi‑Fi/BT)
• External USB: 2 x USB 3.2 Gen2 Type-A
• Serial: 1 x RS232/422/485 (default RS232)
• Video: LVDS default; optional eDP (30-pin DF13); optional HDMI 2.0
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi)
• Power input: 1 x 12 V DC (2.5φ jack); internal 6-pin for 12 V in; internal power outputs for 3.3 V / 5 V / 12 V
• Internal I/O: multiple headers for USB2.0, RS232, SATA power/signal, DIDO, backlight, fan, OSD, audio, RTC battery
• Dimensions: 146 x 102 mm (3.5" form factor)
• Operating humidity: 10%–95% RH non-condensing; operating temp: 0°C to 60°C; storage temp: -40°C to 70°C
• Included: Installation Guide; optional accessories: SATA cables, COM cable, 2-port USB cable, 12V 120W adapter, power cord, CPU heatspreader, membrane, speakers
