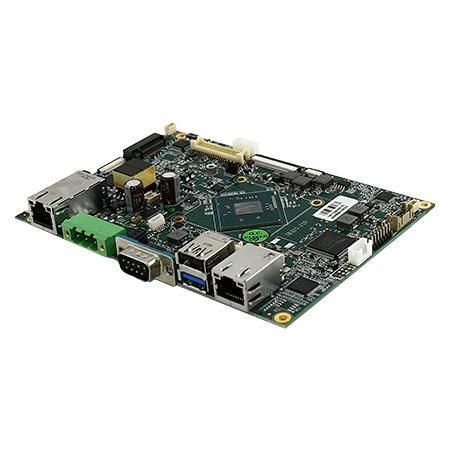

3.5" SubCompact single-board computer IB32S

Intel® Celeron N2930SATA IIM.2

Overview
IB32S is a 3.5” form-factor single board computer (SBC) powered by Intel® Celeron® Bay Trail‑M N2930 (1.83 GHz, burst up to 2.16 GHz). The 146 x 102 mm board is designed for compact embedded and industrial systems and provides front/top accessible I/O plus multiple expansion options for panel integration and space-constrained controllers.

Key features

• 3.5” form factor (146 x 102 mm)
• Intel® Celeron® N2930 processor (1.83 GHz, up to 2.16 GHz)
• DDR3L 1600 SO‑DIMM memory, up to 8 GB (4 GB default)
• Intel® HD Graphics integrated
• 2 x Gigabit Ethernet (one port supports PoE PD, IEEE 802.3at optional)
• Front/top I/O: 1 x USB 3.0, 1 x USB 2.0, 1 x RS232/422/485
• M.2 2242 B‑Key (SATA II) and M.2 2230 E‑Key (Wi‑Fi/BT) expansion
• Storage: 128 GB SSD default; optional 256/512 GB

Applications

• Industrial control and HMI panel integration
• POS/POI, kiosks and digital signage
• Medical instrumentation and embedded healthcare devices
• Video surveillance, transportation and other space‑constrained embedded systems

Certifications

• CE
• FCC

Packaging / Included
Installation guide included. Datasheet, optional cables and accessories available from the manufacturer for system integration.

Technical specifications

• Processor: Intel® Celeron® N2930 (1.83 GHz, burst up to 2.16 GHz)
• Memory: 4 GB default, up to 8 GB DDR3L 1600 SO‑DIMM
• Storage: 128 GB SSD default; optional 256/512 GB; M.2 2242 B‑Key (SATA II)
• Graphics: Intel® HD Graphics (integrated)
• Ethernet: 2 x Gigabit RJ45 (one PoE PD optional, IEEE 802.3at)
• USB: 1 x USB 3.2 Gen1 Type‑A, 1 x USB 2.0 Type‑A (external) plus internal USB headers
• Serial: 1 x RS232/422/485 (configurable)
• Display: internal LVDS/eDP via 40‑pin DF13; optional VGA
• Expansion: M.2 2230 E‑Key (Wi‑Fi/BT)
• Power: 12 V DC input via 3‑pin terminal block; PoE PD support (IEEE 802.3at, up to 25 W)
• OS (optional): Windows 10 IoT Enterprise (64‑bit), Ubuntu 20.04
• Dimensions: 146 x 102 mm
• Operating temperature: 0°C to 60°C
• Storage temperature: -40°C to 70°C
• Humidity: 10% to 95% RH, non‑condensing

Accessories & notes
Optional SATA/COM/USB cables, power adapters and heatspreader available. Confirm mechanical clearances, thermal plan and power requirements during integration.
