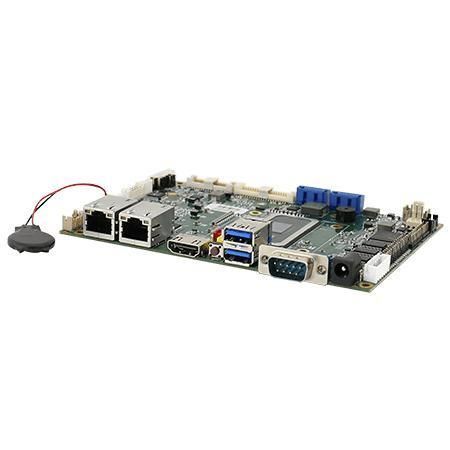

3.5" SubCompact single-board computer IW32

x86Intel® Core™ i5-8265USATA3

Overview
The IW32 is a 3.5" x86 embedded single-board computer powered by Intel® Core™ i5-8265U (1.6 GHz, up to 3.9 GHz). Designed for industrial and embedded applications, it delivers a compact platform with extensive I/O and flexible storage options suitable for machine vision, automation, POS/KIOSK and panel systems.

Key Features

• 3.5" form factor (146 mm x 102 mm), x86 SBC
• Intel® Core™ i5-8265U processor
• 1 x DDR4-2400 SO-DIMM, supports up to 32 GB
• Dual Intel® Gigabit LAN (I210AT + I219LM)
• 2 x SATA III, 1 x M.2 M-Key (2242/2280) for SATA/NVMe, 1 x M.2 2230 E-Key for wireless
• 2 x USB 3.2 Gen1 (Type-A) external, 4 x USB 2.0 (via internal headers)
• 4 x COM (serial), LVDS (40-pin DF13) default, optional eDP/HDMI
• TPM 2.0 support; Windows 10 IoT Enterprise / Ubuntu 20.04 optional

Certifications

• CE
• FCC

Product Details
The IW32 SBC provides a palm-sized industrial computing platform that balances performance and low power consumption. Front/top I/O placement simplifies integration and maintenance in enclosures and panel systems.

Storage and expansion options include dual SATA III ports plus an M.2 M-Key slot (supporting M.2 2242 SATA or M.2 2280 NVMe), enabling fast local storage or redundant paths for industrial applications.

Field deployment is supported by robust connectivity (dual Gigabit LAN, multiple serial ports) and optional wireless via the M.2 E-Key slot, making the board suitable for edge computing, data acquisition and real-time monitoring.

Accessories

• Installation guide (included)
• Optional: SATA signal/power cables, COM cable, 2-port USB cable, 12V 120W adapter, CPU heatspreader, membrane, speakers

Technical specifications

• Model: IW32
• CPU: Intel® Core™ i5-8265U (1.6 GHz, up to 3.9 GHz)
• Memory: DDR4-2400 SO-DIMM x1 — up to 32 GB (default 4 GB)
• Storage: 128 GB SSD default (options up to 1 TB); 2 x SATA III; M.2 2242/2280 M-Key (NVMe/SATA)
• LAN: 2 x Gigabit RJ45 (Intel® I210AT + I219LM)
• USB: 2 x USB 3.2 Gen1 (external), 4 x USB 2.0 (internal headers)
• Serial: 4 x COM (RS232/422/485 support)
• Video: LVDS (40-pin DF13) default; optional eDP (30-pin DF13) and HDMI 1.4
• Power: 12V DC input (external jack) and internal 2-pin/6-pin 12V headers
• Dimensions: 146 x 102 mm (3.5" form factor)
• Operating: 0°C to 60°C; Storage: -40°C to 70°C; Humidity: 10%–95% RH non-condensing
• Security: TPM 2.0
