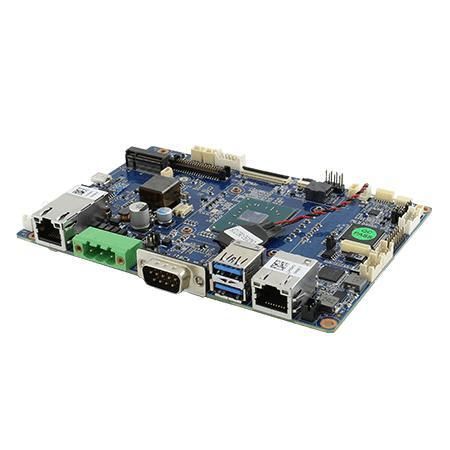

3.5" SubCompact single-board computer IP32S

Intel® Pentium® N4200M.2M.2 Key E

Overview
IP32S is a 3.5" x86 single-board computer (SBC) designed for compact embedded and industrial applications. Available with Intel® Pentium® Apollo Lake N4200, the platform supports fanless operation options and runs Windows, Linux or Android depending on configuration. It targets embedded controllers, panel-based HMIs and edge/IoT nodes where small footprint, broad I/O and reliable operation are required.

Highlights

• Intel® Pentium® N4200 CPU optimized for embedded workloads.
• 3.5" form factor (146 x 102 mm) for space-constrained installations.
• Extensive I/O: dual 2.5GbE, USB 3.0, serial, SATA, M.2 expansion.
• Optional Micro HDMI, PoE PD support, and WLAN/BT via M.2 E-Key.

Key Features

• Form factor: 3.5" SBC, 146 x 102 mm
• Processor: Intel® Pentium® N4200 (1.1 GHz, burst to 2.5 GHz)
• Memory: DDR3L SO-DIMM, 4 GB default, up to 8 GB (1600/1866 MHz)
• Storage: 128 GB SSD default; optional 256/512 GB, 1 TB; M.2 2242 B‑Key (SATA)
• Networking: 2 x 2.5 Giga LAN (RJ45), one port optional PoE PD (IEEE 802.3at)
• I/O: 2 x USB 3.2 Gen1 Type-A, 1 x RS232/422/485 (default RS232), optional Micro HDMI, internal headers for USB/serial
• Expansion: M.2 2242 B-Key (SATA SSD) and M.2 2230 E-Key (Wi‑Fi)
• Security: TPM 2.0 supported
• Power: 12 V DC input via 3‑pin terminal block; PoE PD up to 25 W (optional)

Certifications

• CE
• FCC

Product Details
IP32S offers a palm-sized integrated SBC with front/top I/O placement to simplify integration and maintenance. Typical use cases include embedded controllers, industrial HMI integration, compact automation platforms and edge computing nodes requiring reliable, low-power operation. The board supports internal storage, optional wireless modules and multiple expansion options to tailor system design.

Accessories and Options (summary)

• Default: 4 GB DDR3L, 128 GB SSD, installation guide.
• Optional memory: 8 GB DDR3L.
• Optional storage: 256/512 GB SSD, 1 TB.
• Optional accessories: SATA signal/power cables, COM cable, USB cables, CPU heatspreader, membrane, speakers, AC adapter and country-specific power cords.

Technical specifications

• Processor: Intel® Pentium® N4200 (1.1 GHz, up to 2.5 GHz)
• Memory: 4 GB default; up to 8 GB DDR3L SO-DIMM
• Storage: 128 GB SSD default; M.2 2242 B-Key (SATA III)
• Ethernet: 2 x Intel® controllers, 2 x 2.5 Giga LAN RJ45 (one port PoE PD optional)
• Graphics: Intel® HD Graphics; optional Micro HDMI; internal LVDS/eDP support
• USB: 2 x USB3.2 Gen1 Type-A external; internal headers for USB2.0
• Serial: 1 x RS232/422/485 external (default RS232); internal UART headers
• SATA: 1 x SATA III internal
• Expansion: M.2 2242 B-Key, M.2 2230 E-Key
• Power input: 12 V DC via 3‑pin terminal block; PoE PD per IEEE 802.3at (25 W)
• Dimensions: 146 x 102 mm
• Operating temp: 0°C to 60°C; Storage temp: -40°C to 70°C; Humidity: 10%–95% RH non-condensing
• Certifications: CE, FCC
