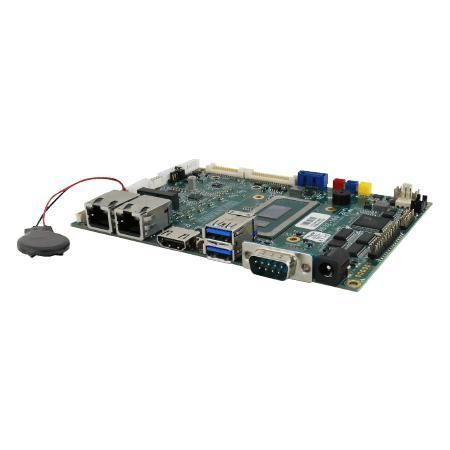

3.5" SubCompact single-board computer IAD32

Intel® Core i512th Generation Intel® Core™SATA3

Overview
The IAD32 is a compact 3.5" (146 x 102 mm) x86 embedded single-board computer designed for industrial automation, embedded control and edge computing. It integrates a 12th Gen Intel® Core™ i5 processor, supports DDR5 memory, M.2 NVMe storage and dual 2.5GbE LAN in a small form factor with front/top-facing I/O for easy integration and maintenance.

Key features

• 3.5” form factor (146 x 102 mm), x86 embedded SBC
• Intel® 12th Gen Core™ i5-1235U processor (up to 4.40 GHz)
• 1 x SO-DIMM DDR5 4800 MHz (max. 32 GB)
• 1 x M.2 2280 M-Key for NVMe SSD; optional SATA III for 2.5" drive
• Dual 2.5 Giga LAN RJ45 (2 x 2.5GbE)
• TPM 2.0 security; 12 V DC single-voltage input

Certifications

• CE
• FCC

Applications
The IAD32 is suited for industrial automation, embedded controllers, HMI and edge/IIoT systems where space is limited but high CPU performance, fast storage and reliable networking are required. Front/top I/O layout simplifies installation, wiring and service access.

Technical specifications

• Model: IAD32
• CPU: Intel® Core™ i5-1235U, base 3.3 GHz (turbo up to 4.40 GHz)
• Memory: 1 x SO-DIMM DDR5 4800 MHz; default 8 GB; optional 16 GB / 32 GB; max 32 GB
• Storage: 1 x M.2 2280 M-Key NVMe (256 GB default; optional 512 GB / 1 TB / 2 TB); optional 1 x SATA III for 2.5" SSD/HDD up to 2 TB
• LAN: 2 x Intel® Ethernet controllers, 2 x 2.5 Giga LAN RJ45
• Security: TPM 2.0
• OS support (optional): Windows 11 IoT Enterprise (64-bit); Windows 11 Pro (64-bit); Ubuntu 22.04 (note: Wake on Touch not supported on Ubuntu)
• Wireless: optional via M.2 2230 E-Key (WLAN/BT)
• External USB: 2 x USB 3.2 Gen2x1 (Type-A)
• External serial: 1 x RS232/422/485 (default RS232)
• Video: default LVDS (40-pin DF13); optional eDP 1.4a (30-pin DF13) up to 4096x2304@60Hz; optional HDMI 2.0
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi)
• External power: 1 x 12V DC, 2.5φ DC jack; internal power input: 1 x 6-pin for 12V DC in
• Internal power outputs: 3.3V / 5V / 12V pins provided
• Internal I/O: USB headers, multiple RS232 headers, LVDS/eDP connectors, backlight/DIDO/OSD/audio/RTC/fan connectors
• Dimensions: 146 x 102 mm (3.5" form factor)
• Operating temperature: 0 °C to 60 °C; storage: -40 °C to 70 °C
• Operating humidity: 10% to 95% RH, non-condensing
• Included accessories: Installation Guide
• Optional accessories: SATA cable/power, COM cable, 2-port USB cable, 12V 120W adapter, country power cord, heatspreader, membrane, speakers
