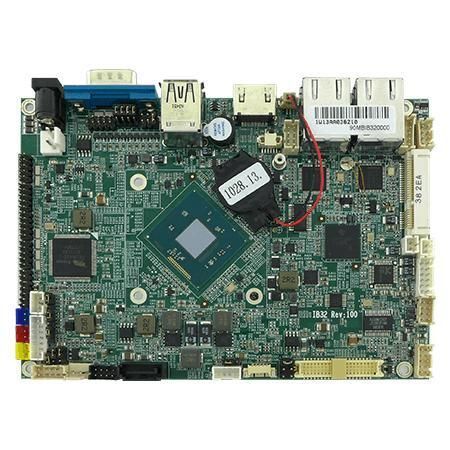

3.5" motherboard IB32

embeddedIntel® Celeron N2930x86

Overview
The IB32 is a 3.5" x86 embedded motherboard designed for space‑constrained industrial and embedded systems. It integrates an Intel® Celeron® N2930 processor with a balanced set of legacy and modern I/O to support display‑integrated controllers, HMI and industrial control appliances.

Key Features

• 3.5" form factor (146 x 102 mm), x86 single‑board computer
• Intel® Celeron® N2930 (1.83 GHz base, up to 2.16 GHz burst)
• 1 x DDR3L SO‑DIMM; supports up to 8 GB (1066/1333/1600 MHz per documentation)
• Integrated VGA, dual‑channel 24‑bit LVDS (40‑pin DF13), HDMI 1.4 (optional)
• 2 x Gigabit Ethernet (Intel® controllers)
• Storage & expansion: 1 x SATA II; mini PCIe / mPCIe slots for SSD or wireless modules
• I/O: USB 3.2 Gen1 (Type‑A) + multiple USB 2.0 (external/internal), 4 x COM, 12 x GPIO, IEEE 1394b, numerous internal headers for power, backlight, audio, fan, OSD and debug

Certifications

• CE
• FCC

Product Details
The IB32 positions a low‑power Intel® Bay Trail‑M platform in a palm‑sized 3.5" SBC suitable for industrial HMI, embedded controllers and legacy‑interface systems. I/O placement favors front/top access for simplified integration and maintenance. Optional mini PCIe expansion enables wireless connectivity or additional storage. Typical integrations include display controllers, industrial gateways and compact control units where both LVDS/VGA and modern interfaces are required.

Technical specifications

• Model: IB32
• Processor: Intel® Celeron® N2930 (1.83 GHz, burst to 2.16 GHz)
• Memory: 1 x 204‑pin DDR3L SO‑DIMM; default 4 GB, optional up to 8 GB
• Storage: Default 128 GB SSD; optional 256/512 GB; 1 x SATA II
• Ethernet: 2 x Gigabit LAN (RJ45)
• USB: 1 x USB3.2 Gen1 Type‑A external; USB2.0 external + internal headers (support for up to 4 internal USB2.0)
• Serial: 1 x RS232/422/485 external (default RS232); internal headers for additional RS232 ports
• Display: Dual‑channel 24‑bit LVDS (40‑pin DF13, default); VGA header optional; HDMI 1.4 optional
• Expansion: mini PCIe / mPCIe slots for SSD or Wi‑Fi module
• Power: 12 V DC input (2.5φ DC jack); internal power headers for 3.3V/5V/12V outputs
• Internal I/O: backlight (7‑pin), DIDO (14‑pin), VR/brightness control, OSD (10‑pin), audio header (12‑pin), speaker connectors, RTC battery, BIOS debug header
• Dimensions: 146 x 102 mm
• Operating temperature: 0°C to 60°C; storage: -40°C to 70°C
• Operating humidity: 10% to 95% RH, non‑condensing

Included / optional accessories

• Included: Installation Guide
• Optional: SATA signal/power cables, COM cable, 2‑port USB cable, 12V 84W adapter, country power cord, CPU heatspreader, membrane keypad, speaker set, mini PCIe wireless modules
