PCAP touchscreen panel PC R15IAD3S-SPC369-P1

multitouch screen15"Intel® Core i5-1235U

Overview

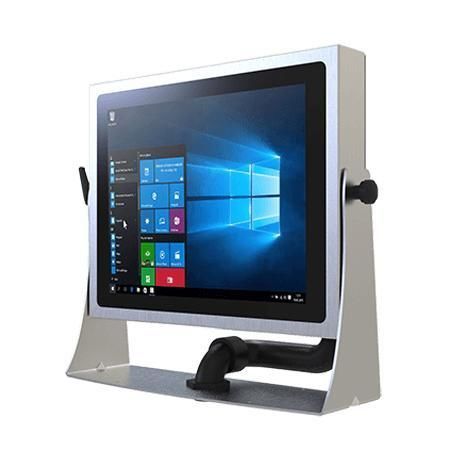

This 15.0-inch industrial Panel PC is built for strict hygiene and washdown environments. With a SUS316 (AISI 316) stainless steel enclosure and IP69K rating, it withstands high-pressure, high-temperature cleaning cycles common in food, beverage and chemical production.

Extra protection
A pre-installed waterproof sealed conduit provides an additional protective route for peripheral cables to reduce downtime and extend service life in production lines.

Touch interaction
Projected capacitive (PCAP) multi-touch enables precise data entry and gesture control, with support for Glove and Rain modes suited to operational HMI workflows.

Key features

• 12th Gen Intel® Core™ i5-1235U (3.3 GHz, up to 4.40 GHz)
• Fanless cooling for low-maintenance operation
• SUS316 / AISI 316 stainless steel housing
• Full IP69K waterproof enclosure for high-pressure, high-temperature washdowns
• True flat, edge-to-edge front for easy cleaning
• Pre-installed waterproof conduit pipe for cable protection
• VESA mount standard; optional Yoke mount stand
• Support for Glove and Rain modes; optional optical bonding

Certifications

• IP69K
• CE
• FCC

Accessories (included / optional)

• Included: 1 x Waterproof Conduit 1.5 m
• Included: 1 x Waterproof Conduit 0.3 m
• Included: 2 x Elbow for conduit connection
• Included: 1 x AC to DC power adapter with power cord
• Included: 1 x D-sub9 (male) to RJ45 adapter
• Included: 1 x D-sub9 (female) to RJ45 adapter
• Included: 1 x External RJ45 male-to-male cable
• Included: Manual and VESA screws
• Optional: Open wire cable for Phoenix connector
• Optional: Yoke mount stand kit
• Optional: Optical bonding

Product highlights

• SUS316 stainless construction for hygienic and corrosive environments
• IP69K rating for reliable protection during high-pressure, high-temperature washdowns
• Pre-installed waterproof conduit to protect external cabling
• Fanless design suitable for dusty and food-processing areas

Technical specifications

• Display: 15.0 inches, Resolution 1024 x 768, Brightness 300 nits, Contrast 2000:1, View angles 88/88/88/88, Active area 304.1 x 228.1 mm
• Processor: Intel® Core™ i5-1235U (3.3 GHz, up to 4.40 GHz)
• Memory: 8GB default; optional 16GB / 32GB
• Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB/4TB; optional 1 x SATA III for 2.5" SSD/HDD up to 2TB
• Ethernet: 2 x Intel® Gigabit Ethernet controllers (2 x RJ45)
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise 64-bit (optional); Windows 11 Pro 64-bit (optional); Linux Ubuntu 22.04 (optional, Wake on Touch not supported)
• Dimensions: 378 x 301 x 56.2 mm; Mounting: VESA (default), Yoke (optional)
• Enclosure: Stainless housing (SUS316 / AISI 316); Cooling: Fanless
• Operating humidity: 10%–90% RH non-condensing; Operating temperature: 0°C to 45°C; Storage temperature: -20°C to 60°C
• IP rating: IP69K; Certifications: CE, FCC
• I/O: 2 x USB 3.2 Gen1x1 (Type-A); 1 x RS232/422/485 (default RS232); 2 x Giga LAN RJ45; 1 x HDMI 1.4
• Indicator / Controls: 1 x LED indicator on power button; 1 x Power Button
• Power: 12V DC in
