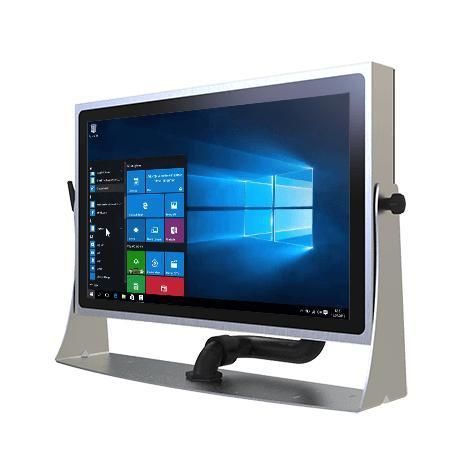

PCAP touchscreen panel PC W22IT3S-SPA369-P1

multitouch screen21.5"Intel® Core™ i5-1135G7

Overview 21.5-inch stainless steel IP69K Panel PC W22IT3S-SPA369-P1 equipped with 11th Gen Intel® Core™ i5-1135G7, fanless cooling and SUS 316 / AISI 316 housing for applications requiring strict hygiene and frequent high-pressure, high-temperature washdowns. Features waterproof sealed conduit for cable protection, true flat edge-to-edge front, VESA mount (standard) and optional Yoke, Glove/Rain mode support and optional optical bonding.

Key Features

• 21.5” 1920 x 1080 resolution, IP69K stainless panel PC
• Intel® Core™ i5-1135G7 2.4GHz (up to 4.2GHz)
• Fanless cooling system
• SUS 316 / AISI 316 stainless steel enclosure
• Full IP69K waterproof protection
• True flat, easy-to-clean edge-to-edge front surface
• Waterproof sealed conduit pipe for cable protection
• VESA mount (standard) and optional Yoke mount
• Glove / Rain mode support
• Optional optical bonding

Certifications

• IP69K
• FCC
• CE

Product Highlights & Design Details

• Designed for strict hygiene: stainless housing and IP69K allow regular high-pressure, high-temperature washdowns and disinfection routines.
• Extra protection with sealed conduit: preinstalled waterproof conduit provides added protection for peripheral cabling to extend service life and reduce downtime.
• Projected capacitive multi-touch: high-sensitivity PCAP supports multi-finger gestures for intuitive operation; supports Glove/Rain mode for use with gloves or in wet conditions.

Included Accessories (standard)

• 1 x Waterproof Conduit 1.5m
• 1 x Waterproof Conduit 0.3m
• 2 x Elbow for conduit connection
• 1 x AC to DC power adapter with power cord
• 1 x D-sub9 (male) to RJ45 adapter
• 1 x D-sub9 (female) to RJ45 adapter
• 1 x External RJ45 male-to-male cable
• Manual
• VESA screws

Optional Accessories

• Open wire cable for Phoenix connector
• Yoke mount stand kit

Technical specifications

• Display: 21.5 inches, 1920 x 1080, 250 nits, 3000:1 contrast, active area 476.64 x 268.11 mm, viewing angles 89/89/89/89
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Processor: Intel® Core™ i5-1135G7 2.4GHz (up to 4.2GHz)
• Memory: 4GB (default); options 8GB / 16GB / 32GB
• Storage: 128GB SSD (default); optional 256GB / 512GB / 1TB / 2TB / 4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional)
• Ethernet: 2 x Intel® Gigabit Ethernet controllers (2 x RJ45)
• Security: TPM 2.0
• Operating system (optional): Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Linux Ubuntu 22.04 (Wake on Touch not supported on Ubuntu)
• Dimensions: 541 x 337 x 56.2 mm
• Mounting: VESA mount (standard); Yoke mount optional
• Enclosure: Stainless steel (SUS 316 / AISI 316)
• Cooling system: Fanless design
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temperature 0°C–45°C; Storage temperature -20°C–60°C
• IP rating: IP69K
• IO ports: 2 x USB 3.2 Gen1 Type-A; 1 x RS232/422/485 (default RS232); 1 x HDMI 1.4; 2 x Giga LAN RJ45; 1 x LED indicator on power button
• Power: 12V DC input
