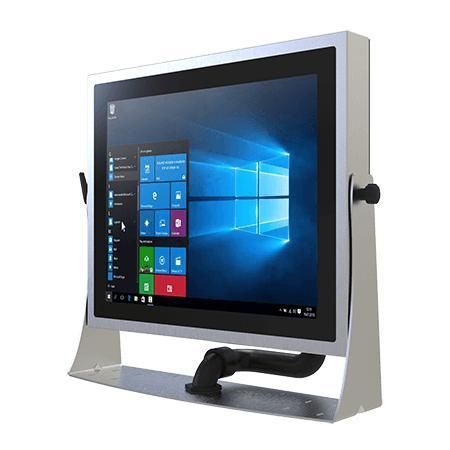

PCAP touchscreen panel PC R19IT3S-SPM169-P1

multitouch screen19"Intel® Core™ i5-1135G7

Overview This 19.0-inch Panel PC R19IT3S-SPM169-P1 is engineered for strict hygiene environments with a SUS316 / AISI 316 stainless steel enclosure and full IP69K protection, tolerating high-pressure, high-temperature washdowns common in food, beverage and chemical production lines.

Extra Protection A pre-installed waterproof conduit pipe provides sealed cable routing for peripheral connections, reducing downtime and extending operational life in washdown areas.

Touch Interaction Projected capacitive (PCAP) multi-touch screen supports multi-finger gestures, glove and rain modes, enabling data entry, rotation, drag-and-drop and pinch-to-zoom operations. Optional optical bonding is available to improve durability and readability.

Key Features

• Intel® Core™ i5-1135G7 (11th Gen) 2.4GHz (up to 4.2GHz)
• Fanless cooling for silent, low-maintenance operation
• SUS316 / AISI 316 stainless steel housing suitable for food and chemical industries
• Full IP69K waterproof enclosure
• True flat, edge-to-edge front surface for easy cleaning
• Pre-installed waterproof sealed conduit pipe for cable protection
• VESA mount standard; optional Yoke mount stand
• Glove and Rain modes supported
• Optional optical bonding

Product Highlights Hygienic stainless housing with IP69K rating, high-sensitivity PCAP multi-touch tolerating gloves and wet conditions, fanless reliability and pre-installed conduit for protected cable routing in production environments.

Accessories

• 1 x Waterproof Conduit 1.5m
• 1 x Waterproof Conduit 0.3m
• 2 x Elbow for conduit connection
• 1 x AC to DC power adapter with power cord
• 1 x D-sub9 (male) to RJ45 adapter
• 1 x D-sub9 (female) to RJ45 adapter
• 1 x External RJ45 male-to-male cable
• Manual
• VESA screws

Optional Accessories

• Open wire cable for Phoenix connector
• Yoke mount stand kit

Technical specifications

• Model: R19IT3S-SPM169-P1
• Display: 19.0 inches; Projected Capacitive Multi Touch Screen; Resolution 1280 x 1024; Brightness 250 nits; Contrast ratio 1000:1; Viewing angles 85/85/80/80; Active area 376.32 x 301.06 mm
• Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
• Memory: 4GB default; options 8GB / 16GB / 32GB
• Storage: 128GB SSD default; options 256GB / 512GB / 1TB / 2TB / 4TB; 1 x SATA III for 2.5-inch SSD/HDD up to 2TB (optional)
• Networking: 2 x Intel® Gigabit LAN (RJ45)
• Security: TPM 2.0
• Operating system (optional): Windows 11 IoT Enterprise (64-bit); Windows 11 Pro (64-bit); Linux Ubuntu 22.04 (no Wake on Touch)
• Dimensions: 468 x 395 x 57 mm
• Mounting: VESA mount (standard); Yoke mount (optional)
• Enclosure: SUS316 / AISI 316 stainless housing
• Cooling: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 45°C; Storage temperature: -20°C to 60°C
• IP rating: IP69K
• Certifications: CE, FCC
• IO ports: 2 x USB 3.2 Gen1x1 (Type-A); 1 x RS232/422/485 (default RS232); 2 x Giga LAN RJ45; 1 x HDMI 1.4
• Indicator / Control: 1 x LED indicator on power button; 1 x Power button
• Power: 12V DC input
