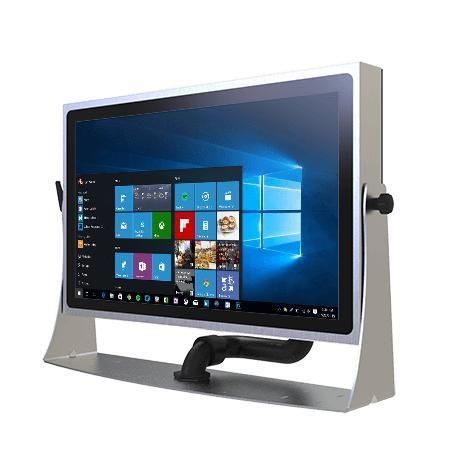

PCAP touchscreen panel PC W24IT3S-SPA269-P1

multitouch screen24"11th Generation Intel® Core™

Overview
This 24-inch stainless steel Panel PC W24IT3S-SPA269-P1 is engineered for strict hygiene environments in food, beverage and chemical industries. It features an 11th Gen Intel® Core™ i5 processor, fanless cooling, IP69K protection and a true-flat, edge-to-edge front that supports Glove/Rain touch modes. A waterproof sealed conduit is pre-installed for cable protection; optical bonding is available as an option.

Key Features

• Intel® Core™ i5-1135G7 (11th Gen) 2.4 GHz (up to 4.2 GHz)
• Fanless cooling design
• SUS 316 / AISI 316 stainless steel enclosure
• Full IP69K waterproof rating
• True-flat, easy-to-clean edge-to-edge front
• Pre-installed waterproof sealed conduit for cable protection
• VESA mount support; optional Yoke mount stand
• Glove / Rain touch modes supported
• Optical bonding available (optional)

Hygiene compliance
Designed to withstand high-pressure, high-temperature washdowns and regular disinfection procedures, the stainless steel housing and IP69K rating meet strict hygiene requirements common in food, beverage and chemical production environments.

Conduit protection
The pre-installed waterproof conduit (with elbows included) protects peripheral cabling from exposure and mechanical stress, extending service life and reducing downtime in production lines.

Projected capacitive touchscreen
The projected capacitive multi-touch display supports sensitive multi-finger gestures (pinch-to-zoom, rotate, drag-and-drop) and operates in Glove/Rain modes for industrial use.

Certifications

• IP69K
• CE
• FCC

Accessories included

• 1 x Waterproof conduit 1.5 m
• 1 x Waterproof conduit 0.3 m
• 2 x Elbow for conduit connection
• 1 x AC to DC power adapter with power cord
• 1 x D-sub9 (male) to RJ45 adapter
• 1 x D-sub9 (female) to RJ45 adapter
• 1 x External RJ45 male-to-male cable
• Manual
• VESA screws

Optional accessories

• Open wire cable for Phoenix connector
• Yoke mount stand kit
• Optical bonding

Technical specifications

• Display: 24.0 inches, Projected Capacitive Multi Touch Screen
• Resolution: 1920 x 1080
• Panel brightness: 250 nits
• Contrast ratio: 3000:1
• View angles: 89/89/89/89
• Active area: 527.04 x 296.46 mm
• Processor: Intel Core i5-1135G7 2.4 GHz (up to 4.2 GHz)
• Memory: 4 GB (default); optional 8 GB / 16 GB / 32 GB
• Storage: 128 GB SSD (default); optional 256 / 512 GB, 1 TB, 2 TB, 4 TB; 1 x SATA III for 2.5" SSD/HDD up to 2 TB (optional)
• Ethernet controller: 2 x Intel® Ethernet Controller (2 x Giga LAN RJ45)
• Security: TPM 2.0
• Operating system (optional): Windows 11 IoT Enterprise (64-bit); Windows 11 Pro (64-bit); Linux Ubuntu 22.04 (Wake on Touch not supported)
• Dimensions: 620 x 390 x 56 mm
• Mounting: VESA mount (default); Yoke mount (optional)
• Enclosure: Stainless housing (SUS 316 / AISI 316)
• Cooling system: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 45°C
• Storage temperature: -20°C to 60°C
• IP rating: IP69K
• Certifications: CE, FCC, IP69K
• USB: 2 x USB 3.2 Gen1x1 (Type-A)
• Serial port: 1 x RS232/422/485 (default RS232)
• LAN: 2 x Giga LAN RJ45
• Video: 1 x HDMI 1.4
• Indicator: 1 x LED on power button
• Control: 1 x Power button
• Power: 12V DC in
