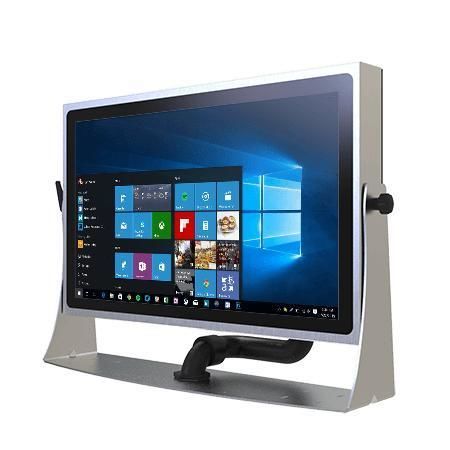

PCAP touchscreen panel PC W24IAD3S-SPA269-P1

multitouch screen24"Intel® Core i5-1235U

Key Features

• 12th Gen Intel® Core™ i5-1235U 3.3 GHz (up to 4.40 GHz)
• Fanless cooling design
• SUS316 / AISI 316 stainless steel enclosure for food and chemical environments
• Full IP69K waterproof protection for high-pressure washdowns
• True flat, edge-to-edge front surface for easy cleaning
• Pre-installed waterproof sealed conduit for cable protection
• VESA mount supported; optional Yoke mount stand
• Glove / Rain mode support
• Optional optical bonding

Certifications

• IP69K
• FCC
• CE

Overview
Designed for strict hygiene and washdown applications, this 24-inch Panel PC features a SUS316 stainless steel housing and IP69K ingress protection to withstand high-pressure, high-temperature cleaning cycles. It is intended for food, beverage and chemical environments where regular disinfection and splash cleaning are required.

Extra Protection with Conduit Pipe
The product ships with a custom waterproof conduit pre-installed to protect peripheral cables, reducing exposed wiring and minimizing downtime in production areas.

Projected Capacitive Touchscreen
The PCAP multi-touch screen is highly sensitive and supports gestures such as rotate, drag-and-drop and pinch-to-zoom. Glove and rain modes enable reliable operation in production conditions.

Technical specifications

• Display: 24.0 inches; Projected Capacitive Multi Touch Screen; Resolution 1920 x 1080; Brightness 250 nits; Contrast Ratio 3000:1; Viewing Angles 89/89/89/89; Active Area 527.04 x 296.46 mm
• Processor: Intel® Core™ i5-1235U 3.3GHz (up to 4.40 GHz)
• Memory: 8GB (default); optional 16GB, 32GB
• Storage: 128GB SSD (default); optional 256GB, 512GB, 1TB, 2TB, 4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional)
• Ethernet: 2 x Intel® Ethernet Controller (2 x Giga LAN RJ45)
• Security: TPM 2.0
• Operating System (optional): Windows 11 IoT Enterprise (64-bit); Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (no Wake on Touch)
• Dimensions: 620 x 390 x 56 mm
• Mounting: VESA mount (default); Yoke mount (optional)
• Enclosure: Stainless housing (SUS316 / AISI 316)
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP rating: IP69K
• Certification: CE, FCC
• IO Ports: 2 x USB 3.2 Gen1x1 (Type-A); 1 x RS232/422/485 (default RS232); 2 x Giga LAN RJ45; 1 x HDMI 1.4
• Indicator: 1 x LED indicator on power button
• Control: 1 x Power Button
• Accessories (included): 1 x Waterproof Conduit 1.5m; 1 x Waterproof Conduit 0.3m; 2 x Elbow for conduit connection; 1 x AC to DC power adapter with power cord; 1 x D-sub9 (male) to RJ45 adapter; 1 x D-sub9 (female) to RJ45 adapter; 1 x External RJ45 male-to-male cable; Manual; VESA screws
• Optional Accessory: Open wire cable for phoenix connector; Yoke mount stand kit
• Power: 12V DC in
