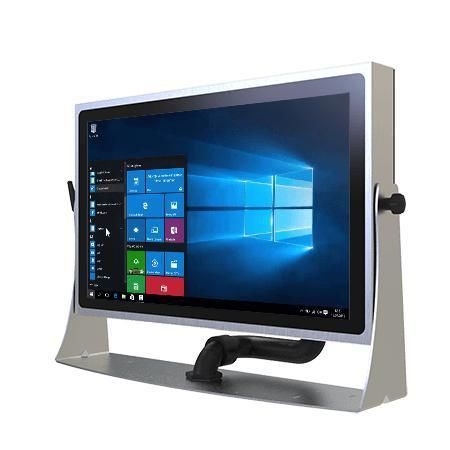

PCAP touchscreen panel PC W22IAD3S-SPA369-P1

multitouch screen21.5"Intel® Core i5-1235U

Key Features

• 12th Generation Intel® Core™ i5-1235U 3.3GHz (up to 4.40 GHz)
• Fanless cooling system
• SUS316 / AISI 316 stainless steel enclosure for food and chemical industries
• Full IP69K waterproof protection
• True flat, edge-to-edge front surface for easy cleaning
• Waterproof sealed conduit pipe for cable protection (pre-installed)
• Supports VESA mount; optional yoke mount stand
• Glove and Rain modes supported
• Optical bonding (optional)

Overview
With a SUS316 stainless housing and IP69K rating, this 21.5" Panel PC is designed for environments requiring strict hygiene and frequent high-pressure, high-temperature washdowns such as food, beverage and chemical production. The pre-installed waterproof conduit protects peripheral cables and reduces downtime in production facilities. The projected capacitive multi-touch display supports glove and rain modes to ensure reliable input under industrial conditions. Standard VESA mounting is provided with an optional yoke mount stand available.

Highlights

• SUS316 / AISI 316 stainless enclosure suitable for hygienic and corrosive environments
• IP69K-rated housing for protection against high-pressure, high-temperature washdowns
• Waterproof sealed conduit for additional cable protection
• Edge-to-edge true-flat front surface for easy cleaning and disinfection
• Fanless design minimizes ingress points and maintenance

Certifications

• IP69K
• CE
• FCC

Included Accessories

• 1 x Waterproof Conduit 1.5m
• 1 x Waterproof Conduit 0.3m
• 2 x Elbow for conduit connection
• 1 x AC to DC power adapter with power cord
• 1 x D-sub9 (male) to RJ45 adapter
• 1 x D-sub9 (female) to RJ45 adapter
• 1 x External RJ45 male-to-male cable
• Manual
• VESA screws

Optional Accessories

• Open wire cable for Phoenix connector
• Yoke mount stand kit

Technical Specifications

• Display Size: 21.5 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Resolution: 1920 x 1080
• Panel Brightness: 250 nits
• Contrast Ratio: 3000:1
• View Angles: 89/89/89/89
• Active Area: 476.64 x 268.11 mm
• Processor: Intel® Core™ i5-1235U 3.3GHz (up to 4.40 GHz)
• Memory: 8GB (Default); 16GB / 32GB optional
• Storage: 128GB SSD (Default); options: 256GB / 512GB / 1TB / 2TB / 4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional)
• Ethernet Controller: 2 x Intel® Ethernet Controller (2 x Gigabit LAN)
• Security: TPM 2.0
• Operating System: Windows 11 IoT Enterprise (64-bit) (optional); Windows 11 Pro 64-bit (optional); Linux Ubuntu 22.04 (optional, does not support Wake on Touch)
• Dimension: 541 x 337 x 56.2 mm
• Mounting: VESA mount (Default); Yoke mount (Optional)
• Enclosure: Stainless Housing (SUS316 / AISI 316)
• Cooling System: Fanless Design
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP Rating: IP69K
• Certifications: CE, FCC
• USB Port: 2 x USB 3.2 Gen1x1 (Type-A)
• Serial Port: 1 x RS232/422/485 (Default RS232)
• LAN: 2 x Giga LAN RJ45 Connector
• Video: 1 x HDMI 1.4
• Indicator: 1 x LED indicator on power button
• Button: 1 x Power Button
• Power Rating: 12V DC in
