PCAP touchscreen panel PC R15IT3S-SPC369-P1

multi-touch screen15"Intel® Core™ i5-1135G7

Overview

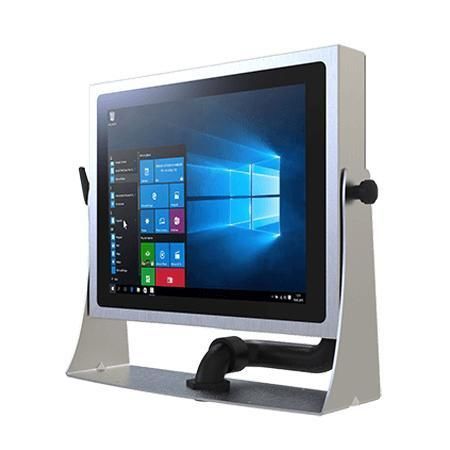

15.0-inch stainless steel Panel PC with IP69K protection designed for environments that require strict hygiene and regular high-pressure, high-temperature washdowns. Suited for food, beverage and chemical applications where frequent disinfection and easy cleaning are mandatory.

Key Features

• Intel® Core™ i5-1135G7 (11th Gen) 2.4GHz (up to 4.2GHz)
• Fanless cooling design
• SUS316 / AISI 316 stainless steel housing
• Full IP69K waterproof enclosure
• True flat, edge-to-edge front surface for easy cleaning
• Pre-installed waterproof sealed conduit pipe for cable protection
• Supports VESA mount (standard) and optional Yoke mount stand
• Glove / Rain mode for touch operation
• Optical bonding (optional)

Extra Protection with Conduit Pipe
Pre-installed waterproof conduit pipe protects peripheral cable connections from water ingress and mechanical wear, improving long-term reliability and reducing downtime in production environments.

Projected Capacitive Touchscreen
High-sensitivity PCAP multi-touch screen supports gestures such as rotate, drag-and-drop and multi-finger zoom for efficient data entry and interaction in industrial workflows.

Specifications

• Model: R15IT3S-SPC369-P1
• Display Size: 15.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Resolution: 1024 x 768
• Panel Brightness: 300 nits
• Contrast Ratio: 2000:1
• View Angles: 88, 88, 88, 88
• Active Area: 304.1 x 228.1 mm
• Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
• Memory: 4GB (Default); optional 8GB / 16GB / 32GB
• Storage: 128GB SSD (Default); optional 256GB, 512GB, 1TB, 2TB, 4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional)
• Ethernet controller: 2 x Intel® Ethernet Controller
• Security: TPM 2.0
• Operating System (optional): Windows 11 IoT Enterprise (64 bit); Windows 11 Pro 64 bit; Linux Ubuntu 22.04 (do not support Wake on Touch)
• Dimension: 378 x 301 x 56.2 mm
• Mounting: VESA mount (Default); Yoke mount (Optional)
• Enclosure: Stainless housing (SUS316 / AISI 316)
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP rating: IP69K
• Certification: CE, FCC
• IO Ports: 2 x USB3.2 Gen1x1 (Type-A); 1 x RS232/422/485 (Default RS232); 2 x Giga LAN RJ45; 1 x HDMI 1.4
• Indicator: 1 x LED indicator on power button
• Control Button: 1 x Power button
• Accessory (included): 1 x Waterproof Conduit 1.5m; 1 x Waterproof Conduit 0.3m; 2 x Elbow for conduit; 1 x AC to DC power adapter with power cord; 1 x D-sub9 (male) to RJ45 adapter; 1 x D-sub9 (female) to RJ45 adapter; 1 x External RJ45 male-to-male cable; Manual; VESA screws
• Optional Accessory: 1 x Open wire cable for phoenix connector; Yoke mount stand kit
• Power Rating: 12V DC input
